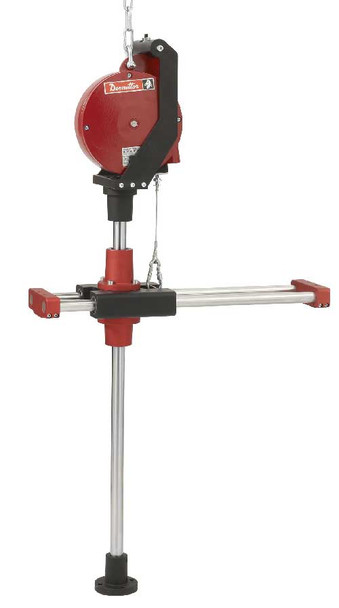

D53-150 by Desoutter - 6158116580

D53-150 -



Available Now At AirToolPro.com / Zampini Industrial 1-800-353-4676

Part number	6158116580
Model	D53-150
Max torque	150 Nm	111 ft.lbs
Max torque	111 ft.lbs	150 Nm
Max. tool weight	7 kg	15.4 lb
Max. tool weight	15.4 lb	7 kg
Arm equipped with	1 x 14DF
Tool clamp diameter	To order separately	To order separately
Tool clamp diameter	To order separately	To order separately
Dimension A	1049 mm	41.3"
Dimension A	41.3"	1049 mm
Dim. Maxi-B	600 mm	23.6"
Dim. Maxi-B	23.6"	600 mm
Dim. Mini-B	240 mm	9.4"
Dim. Mini-B	9.4"	240 mm
Dim. Maxi-C	644 mm	25.4"
Dim. Maxi-C	25.4"	644 mm
Dim. Mini-C	154.5 mm	6.1"
Dim. Mini-C	6.1"	154.5 mm
Dimension D	360 mm	14.4"
Dimension D	14.4"	360 mm
Dimension E	170 mm	6.7"
Dimension E	6.7"	170 mm
Dimension F	90 mm	3.5"
Dimension F	3.5"	90 mm
Dimension G	25 mm	1"
Dimension G	1"	25 mm
Dimension H	150 mm	5.9"
Dimension H	5.9"	150 mm
Diameter d	50 mm	2"
Diameter d	2"	50 mm
Diameter	11 mm	0.4"
Diameter	0.4"	11 mm
Net weight	12.5 kg	27.6 lb
Net weight	27.6 lb	12.5 kg

Desoutter Industrial Tools are some of the finest tools available for production and manufacturing tool applications. AirToolPro.com by Zampini Industrial Group is a premier distributor of Desoutter Air and Electric Tools, and has been a trusted Desoutter Partner since 1987! From precision torque screwdrivers to DC Electric systems to proven high performance air grinders, Desoutter has you covered. Desoutter tools have best in class performance, fit, and finish, and they are designed to achieve the impressive goals below as thoroughly as possible:

- Good Balance	- Minimize Vibration
- Low Weight	- Minimize Exhaust Air Jet
- Minimize Torque Reaction	- Maximize Power To Weight Ratio
- Thermal Insulation	- Minimize Oil From Exhaust
- Minimize Torque Impulse	- Appropriate Size
- Minimize Necessary Trigger Loading	- Excellent Grip
