Description

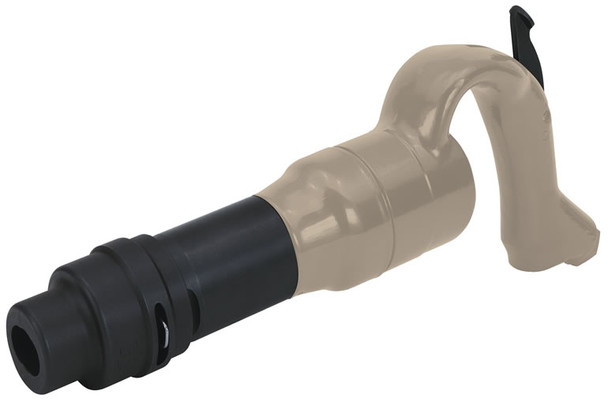

Unlock precision and maneuverability for your toughest chipping tasks with the Ingersoll Rand 1A2SA Chipping Hammer. This short-barrel pneumatic chipper delivers a 1" stroke at an impressive 2500 blows per minute (BPM), making it the ideal choice for applications demanding frequent, controlled impacts. Unlike longer-barrel tools, the 1A2SA's compact design is its significant advantage, allowing you to access and operate effectively in tight, confined workspaces where other tools simply can't reach. Weighing in at a manageable 15 lbs, this robust air tool (requiring 90 PSI and 28 CFM) is recommended for use with at least a 10 horsepower air compressor to ensure optimal performance.
Type: Chipping Hammer | Bore (in.): 1.13 | Bore (mm): 28 | Length without Accessory (in.): 15.5 | Length without Accessory (mm): 394 | Weight without Accessory (lbs): 14.75 | Weight without Accessory (kg): 6.69 | Blows Per Minute (BPM): 2500 | Air Consumption @ Load (CFM): 28 | Air Inlet NPT (in.): 3/8 | Recommended Hose Size (in.): 1/2 | Recommended Hose Size (mm): 13
Features & Benefits:
Compact & Maneuverable: Short barrel design excels in restricted areas, providing superior access and control
High-Frequency Chipping: Delivers 2500 BPM with a 1" stroke, perfect for precise material removal without excessive power
Industrial-Grade Durability: A Size 1 pneumatic percussive chipping gun built for continuous industrial duty, even in harsh working conditions like plaster removal and light demolition
Ergonomic Design: Features a comfortable swan-neck/goose-neck style handle with a rear-grip thumb throttle for enhanced control and reduced operator fatigue
Easy Maintenance: Equipped with a replaceable piston for extended tool life and straightforward servicing
Standardized Compatibility: Utilizes a standard grooved barrel compatible with common chipping hammer retainer springs and accepts 0.680" round nozzle, oval collar steels/bits
The Ingersoll Rand 1A2SA Chipping Hammer is engineered for professionals who need reliable power, precise control, and the ability to work efficiently in challenging spaces. Trust Ingersoll Rand's legacy of quality to get the job done right.
| Model | 1A2SA |
| Weight lb (kg) | 14.75 (6.7) |
| Hex Shank Size in. (mm) | n/a |
| Round Shank Size in. (mm) | 0.68" (17) |
| Retainer Type | Lock-spring (plain arrow) |
| Blows per Minute | 2,500 |
| Stroke Length in. (mm) | 1" (25) |
| Length w/o Accessory in. (mm) | 15.5" (394) |
| Bore Diameter in. (mm) | 1.125" (29) |
| Air Inlet NPT in. | 3/8" |
| Minimum Hose Size in (mm) | 1/2" (13) |
| Air Consumption @ Load cfm (L/min) | 28 (793) |
- Grooved barrel, lock spring retainer
- Swan neck handle
- Outside trigger
- Time tested valve durability
- Replaceable piston
- Long nozzle for extra life
- Threaded barrel and rubber buffered retainer
Industrial Duty Renowned for its valve life and handle durability, this classic tool is widely used throughout industry and construction. It is ideal for light demolition work, bridge decking, concrete surface preparation, metal removal, form stripping, and many other applications.
Ingersoll Rand Construction Tools Catalog PDF
CCN Number 1112762
