Description
Model | 4DA2SA |
Weight lb (kg) | 14.0 (6.4) |
Hex Shank Size in. (mm) | n/a |
Round Shank Size in. (mm) | 0.68" (17) |
Retainer Type | Lock-spring (plain arrow) |
Blows per Minute | 1,600 |
Stroke Length in. (mm) | 4" (102) |
Length w/o Accessory in. (mm) | 18.0" (457) |
Bore Diameter in. (mm) | 1.125" (29) |
Air Inlet NPT in. | 7/8" |
Minimum Hose Size in (mm) | 1" (25) |
Air Consumption @ Load cfm (L/min) | 34 (963) |
- Time tested valve design
- Die cast aluminum handle
- Directional exhaust
- Tease throttle
- Over-molded steel collar

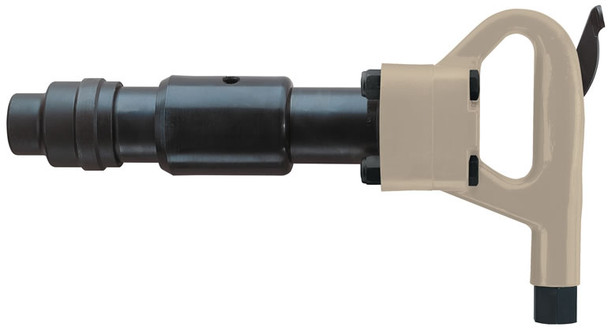

Construction Duty / 4 Bolt This rugged tool features the best power to weight in its class for increased job site productivity. In addition, this unit features a convenient "D" shaped handle and outside trigger, along with a strong four bolt backhead for easy serviceability.
Ingersoll Rand Construction Tools Catalog PDF
CCN Number 1351758
