Description
| Model | 3DA1SA |
| Weight lb (kg) | 13.0 (5.9) |
| Hex Shank Size in. (mm) | 0.58" (15) |
| Round Shank Size in. (mm) | n/a |
| Retainer Type | Lock-spring (plain arrow) |
| Blows per Minute | 1,900 |
| Stroke Length in. (mm) | 3" (76) |
| Length w/o Accessory in. (mm) | 17.0" (432) |
| Bore Diameter in. (mm) | 1.125" (29) |
| Air Inlet NPT in. | 7/8" |
| Minimum Hose Size in (mm) | 1" (25) |
| Air Consumption @ Load cfm (L/min) | 31 (878) |
- Time tested valve design
- Die cast aluminum handle
- Directional exhaust
- Tease throttle
- Over-molded steel collar

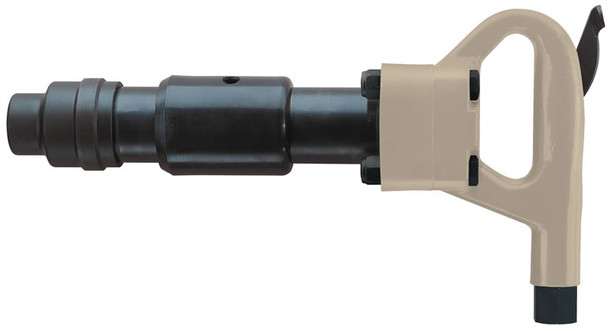

Construction Duty / 4 Bolt This rugged small chipping hammer features the best power to weight in its class for increased job site productivity. In addition, this rock chipping hammer features a convenient "D" shaped handle and outside trigger, along with a strong four bolt back-head for easy serviceability.
Ingersoll Rand Construction Tools Catalog PDF
CCN Number 1345222
