Description
| Model | 2DA1SA |
| Weight lb (kg) | 11.75 (5.3) |
| Hex Shank Size in. (mm) | 0.58" (15) |
| Round Shank Size in. (mm) | n/a |
| Retainer Type | Lock-spring (plain arrow) |
| Blows per Minute | 2,200 |
| Stroke Length in. (mm) | 2" (51) |
| Length w/o Accessory in. (mm) | 13.75" (349) |
| Bore Diameter in. (mm) | 1.125" (29) |
| Air Inlet NPT in. | 7/8" |
| Minimum Hose Size in (mm) | 1" (25) |
| Air Consumption @ Load cfm (L/min) | 28 (793) |
- Time tested valve design
- Die cast aluminum handle
- Directional exhaust
- Tease throttle
- Over-molded steel collar

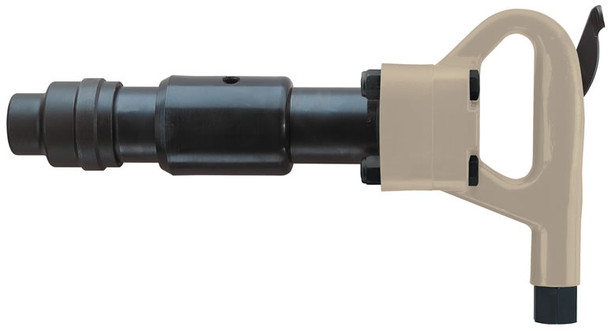

Construction Duty / 4 Bolt This rugged tool features the best power to weight in its class for increased job site productivity. In addition, this unit features a convenient "D" shaped handle and outside trigger, along with a strong four bolt backhead for easy serviceability.
Ingersoll Rand Construction Tools Catalog PDF
CCN Number 1351717
