Description

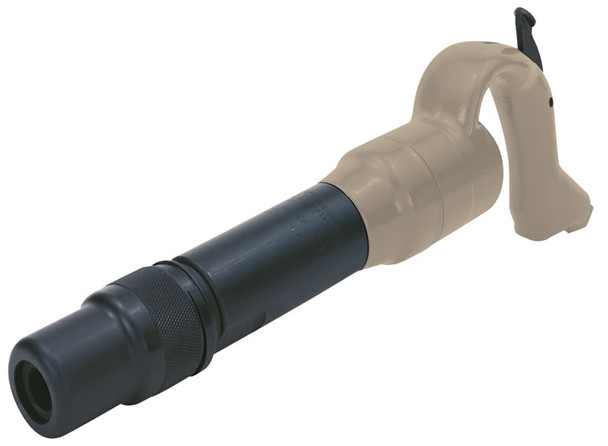

Face your most challenging demolition and material removal projects head-on with the Ingersoll Rand W2A2 Chipping Hammer. A leading model in the specialized W-Series, this heavy-duty pneumatic tool is purpose-built for continuous, rigorous industrial applications. Its standout feature is its exceptional durability and extended component life, drastically reducing downtime and maintenance costs.
The W2A2 is equipped with a 2-inch stroke that delivers a rapid 2300 blows per minute (BPM). This balanced combination of stroke and speed provides the ideal impact for a wide array of tasks, including breaking through concrete, scaling, metal removal, and general construction. What truly sets the W2A2 apart from other chipping hammers is its heavy-duty front end, featuring a threaded barrel and a rubber-buffered retainer. This innovative design significantly prolongs the life of both your chisels and the retainer itself, drastically reducing wear and the need for frequent replacements. Its 0.68-inch round shank ensures broad compatibility with standard round shank, oval collar accessories, providing versatile functionality.
Designed for robust handling and operator comfort, the W2A2 features a classic swan-neck handle with an outside trigger. This ergonomic configuration allows for a firm grip and excellent maneuverability, even during prolonged periods of heavy use. With Ingersoll Rand's century-long legacy of innovation, the W2A2 is a testament to reliability and sustained high performance, ensuring maximum uptime and productivity on your toughest jobs.
Type: Chipping Hammer | Series: W-Series | Shank Size: 0.680 | Shank Type: Round | Stroke Length (in.): 2 | Retainer Type: Rubber-Buffered | Bore (in.): 1.13 | Handle Style: Swan-Neck | Length without Accessory (in.): 16.38 | Collar Type: Oval Collar | Blows Per Minute (BPM): 2300 | Air Consumption @ Load (CFM): 28 | Air Inlet NPT (in.): 3/8 | Recomm. Hose Size (in.): 1/2
Features:
Heavy-Duty Performance: Delivers 2300 BPM with a 2" stroke, ideal for efficient and powerful material removal in demanding industrial environments
Superior Durability (W-Series Advantage): Features a threaded barrel and rubber-buffered retainer to significantly extend steel and retainer life, minimizing wear and reducing replacement costs. This is a key differentiator for the W-series
Robust Construction: Built for continuous heavy-duty industrial use, ensuring reliable performance and longevity even in the harshest conditions
Optimized Handling: Swan-neck handle with an outside trigger provides comfortable grip and precise control.
Secure Tool Retention: Equipped with a 0.68" Round shank, compatible with standard round shank, oval collar chisels for secure and quick changes
Reduced Maintenance: Design features that contribute to extended component life, leading to less downtime and lower operational costs
| Model | W2A2 |
| Weight lb (kg) | 15.13 (6.9) |
| Hex Shank Size in. (mm) | n/a |
| Round Shank Size in. (mm) | 0.68" (17) |
| Retainer Type | Rubber buffered |
| Blows per Minute | 2,300 |
| Stroke Length in. (mm) | 2" (51) |
| Length w/o Accessory in. (mm) | 16.38 (416) |
| Bore Diameter in. (mm) | 1.13" (28) |
| Air Inlet NPT in. | 3/8" |
| Minimum Hose Size in (mm) | 1/2" (13) |
| Air Consumption @ Load cfm (L/min) | 28 (793) |
- Swan neck handle
- Outside trigger
- Time tested valve durability
- Replaceable piston
- Long nozzle for extra life
Heavy Duty Same tough specifications as the "A" series units, but with a heavy duty front end featuring a threaded barrel and rubber buffered retainer for increased steel and retainer life.
Ingersoll Rand Construction Tools Catalog PDF
CCN Number 1069335
