Description

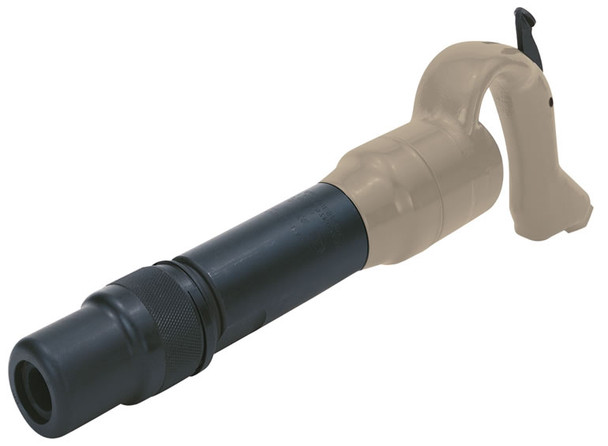

| Model | W3A2 |
| Weight lb (kg) | 16.63 (7.5) |
| Hex Shank Size in. (mm) | n/a |
| Round Shank Size in. (mm) | 0.68" (17) |
| Retainer Type | Rubber buffered |
| Blows per Minute | 1,725 |
| Stroke Length in. (mm) | 3" (76) |
| Length w/o Accessory in. (mm) | 18.25" (464) |
| Bore Diameter in. (mm) | 1.13" (28) |
| Air Inlet NPT in. | 3/8" |
| Minimum Hose Size in (mm) | 1/2" (13) |
| Air Consumption @ Load cfm (L/min) | 29 (821) |
- Swan neck handle
- Outside trigger
- Time tested valve durability
- Replaceable piston
- Long nozzle for extra life
Heavy Duty Same tough specifications as the "A" series units, but with a heavy duty front end featuring a threaded barrel and rubber buffered retainer for increased steel and retainer life.
Ingersoll Rand Construction Tools Catalog PDF
CCN Number 1069434
