Description
| Model | 22KWA1 |
| Free Speed (rpm) | 725 |
| Capacity in Steel Drilling in (mm) | N/A |
| Capacity in Steel Reaming in (mm) | N/A |
| Spindle | Stub taper, threaded wood |
| Spindle Attachment | 1/2" shank |
| Max Power hp (kw) | 1.75 (1.31) |
| Length of Feed in (mm) | 2.5 (63) |
| Weight lb (kg) | 14.25 (6.46) |
| Height Over Spindle in (mm) | 17.25 (438) |
| Side to Center Distance in (mm) | 1.44 (36) |
| Capacity cfm (L/min) | 55 (1,558) |
| NPT Air Inlet in. | 1/2 |
| Recommended Hose Size in (mm) | 3/4 (19) |
Choose from several maintenance drills for general purpose applications up to 7/8"(22mm) holes.
- Ball bearing support for long life and efficient operation
- Durable spur gearing
- Governed motor regulates air to the motor to keep drill working at the peak of its power curve
- Selection of speeds to match all applications

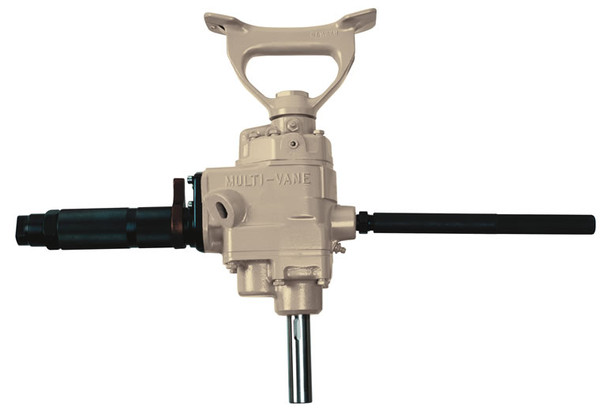

For more information on the Ingersoll Rand 22KWA1 Large Air Drill please call AirToolPro / Zampini Industrial Group at 1-800-353-4676
To view our complete selection of air and electric drills, click here to return to Drills and Tappers - Home.
CCN Number 1077684
