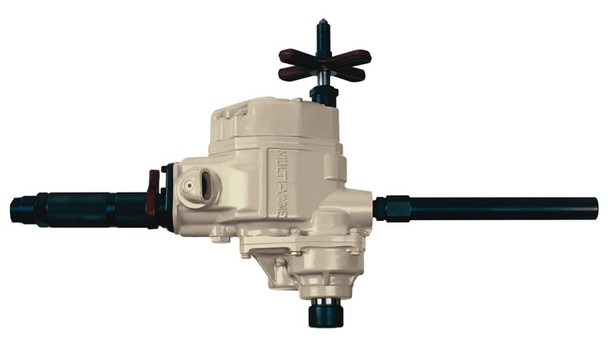

551SMA Drill by Ingersoll Rand Construction

Ingersoll Rand

Please Call For Pricing and Availability
Please Call For Pricing and Availability


Model 551SMA
Free Speed (rpm) 120
Capacity in Steel Drilling in (mm) 3 (76)
Capacity in Steel Reaming in (mm) 2-1/2 (64)
Spindle No. 5 Morse Taper
Spindle Attachment N/A
Max Power hp (kw) 5.6 (4.18)
Length of Feed in (mm) 5 (127)
Weight lb (kg) 69 (31.3)
Height Over Spindle in (mm) 21.88 (556)
Side to Center Distance in (mm) 2.94 (75)
Capacity cfm (L/min) 160 (4,531)
NPT Air Inlet in. 1
Recommended Hose Size in (mm) 1 (25)
  • Graduated roll throttle for excellent speed control
  • Ball bearing support for long life and efficient operation
  • Strong, lightweight heat-treated aluminum housing for strength without weight

These heavy duty industrial pneumatic drills are ideal for opening and closing large valves, or drilling large diameter holes between 1"(25mm) - 3"(76mm).

Ingersoll Rand Construction Tools Catalog PDF

To view our complete selection of air and electric drills, click here to return to Drills and Tappers - Home.
CCN Number 1084664
