Description
| Model | 44SMA |
| Free Speed (rpm) | 155 |
| Capacity in Steel Drilling in (mm) | 2 (51) |
| Capacity in Steel Reaming in (mm) | 2 (51) |
| Spindle | No. 4 Morse Taper |
| Spindle Attachment | N/A |
| Max Power hp (kw) | 3.6 (2.69) |
| Length of Feed in (mm) | 4.25 (108) |
| Weight lb (kg) | 43.75 (19.8) |
| Height Over Spindle in (mm) | 18.25 (463) |
| Side to Center Distance in (mm) | 2.31 (59) |
| Capacity cfm (L/min) | 102 (2,889) |
| NPT Air Inlet in. | 1/2 |
| Recommended Hose Size in (mm) | 3/4 (19) |
- Graduated roll throttle for excellent speed control
- Ball bearing support for long life and efficient operation
- Strong, lightweight heat-treated aluminum housing for strength without weight

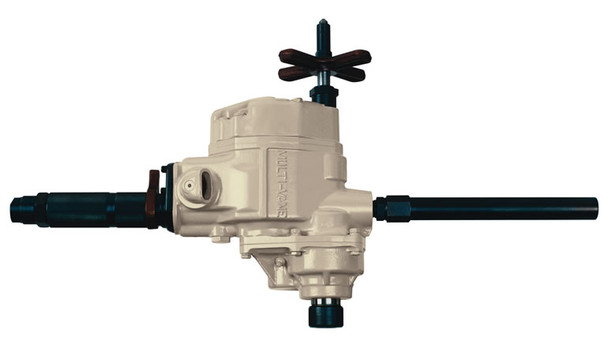

These Ingersoll Rand heavy duty drills are ideal for opening and closing large valves, or drilling large diameter holes between 1"(25mm) - 3"(76mm).
Ingersoll Rand Construction Tools Catalog PDF
To view our complete selection of air and electric drills, click here to return to Drills and Tappers - Home.
CCN Number 1081868
