Description
| Model | 93A4 |
| Retainer Type | Hitch |
| Hex Shank Size in. (mm) | 7/8" x 3-1/4" |
| Weight w/o Accessory lb (kg) | 21 (9.5) |
| Blows per Minute | 2,350 |
| Stroke Length in. (mm) | 2.5" (64) |
| Length w/o Accessory in. (mm) | 17.88" (454) |
| Bore Diameter in. (mm) | 1.69" (43) |
| Air Inlet NPTF in. | 3/8" |
| Min Hose Size in. (mm) | 1/2" (13) |
| Air Consumption @ Load cfm (L/min) | 45 (1274) |
| Vibration m/s2 | 28.0, uncertainty: 8.0 |
- Multiple latch configurations
- "D" handle grip
- Extra long nozzles for long life
- Three finger trigger

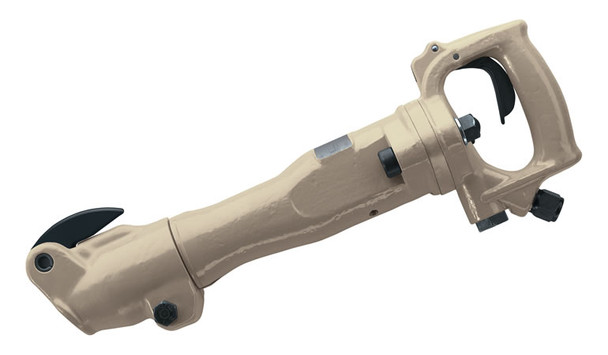

This pneumatic clay digger is ideal for digging in clay, hardpan and frozen ground as well as horizontal concrete demolition, tunneling, and bridgework.
Ingersoll Rand Construction Tools Catalog PDF
CCN Number 1137876
