Description

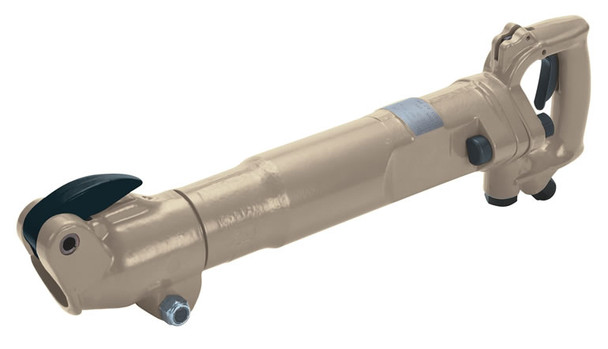

Tackle the most challenging excavation and ground breaking tasks with exceptional power and swift efficiency using the Ingersoll Rand 95LA1 D-Handle Medium-Weight Digger. As a robust member of the 95 Series, this pneumatic digger is expertly engineered to provide a powerful balance of impact energy and manageable weight, making it highly effective for a wide range of applications from compacted soil and tough clay to light concrete demolition.
The 95LA1 delivers a strong 1850 blows per minute (BPM). This optimized impact rate, combined with its effective stroke length, ensures efficient penetration and material removal even in the most stubborn ground conditions. A key feature is its robust latch retainer system, designed for exceptionally fast, secure, and tool-free accessory changes. This system significantly minimizes downtime, allowing operators to rapidly switch bits and maintain consistent workflow, boosting overall productivity. Its "medium-weight" classification provides a substantial increase in power over lighter models without becoming overly cumbersome, striking an ideal balance for sustained, heavy-duty operation.
Equipped with a classic D-handle, the 95LA1 provides a comfortable and secure grip, offering excellent control and leverage for precise digging and breaking. Built with Ingersoll Rand's renowned industrial durability, this digger is a dependable and efficient tool for professional contractors, utility crews, and demanding general construction applications.
Type: Digger | Handle: D-Handle | Bore Dia. (in.): 1.69 | Series: 95 Series | Stroke Length (in.): 4 | Blows Per Minute (BPM): 1850 | Air Consumption @ Load (CFM): 47 | Air Consumption @ Load (l/mn): 1331 | Hex Shank Size (in.): 7/8 x 3-1/4 | Retainer Type: Latch | Vibration m/s² (K): 29.5 (6.6) | Length w/o Accessory (in.): 21.88 | Air Inlet NPT (in.): 3/8 | Min Hose Size (in.): 1/2
Features:
Medium-Weight Design: Offers a powerful balance of impact force and maneuverability, suitable for a wider range of challenging ground conditions
Strong Impact Rate: Delivers 1850 BPM for effective penetration and breakdown of compacted soil, clay, and light concrete
Robust Latch Retainer: Enables exceptionally quick, secure, and tool-free accessory changes, maximizing uptime and operational efficiency
Comfortable D-Handle: Provides an ergonomic and secure grip, enhancing control and reducing operator fatigue during prolonged use
Versatile Applications: Ideal for general digging, trenching, backfilling, breaking hard ground, clay spading, and various light demolition tasks
Durable 95 Series Construction: Built to Ingersoll Rand's high standards for longevity and consistent performance in demanding industrial environments
| Model | 95LA1 |
| Retainer Type | Latch |
| Hex Shank Size in. (mm) | 7/8" x 3-1/4" |
| Weight w/o Accessory lb (kg) | 28 (12.7) |
| Blows per Minute | 1,850 |
| Stroke Length in. (mm) | 4" (102) |
| Length w/o Accessory in. (mm) | 21.88" (556) |
| Bore Diameter in. (mm) | 1.69" (43) |
| Air Inlet NPTF in. | 3/8" |
| Min Hose Size in. (mm) | 1/2" (13) |
| Air Consumption @ Load cfm (L/min) | 47 (1331) |
| Vibration m/s2 | 29.5, uncertainty: 6.6 |
- Multiple latch configurations
- "D" handle grip
- Extra long nozzles for long life
- Three finger trigger
This pneumatic digger is great for heavier digging, foundation work, pipeline and utility work as well as heavier concrete, bridge and brick demolition.
Ingersoll Rand Construction Tools Catalog PDF
CCN Number 1128628
