Description

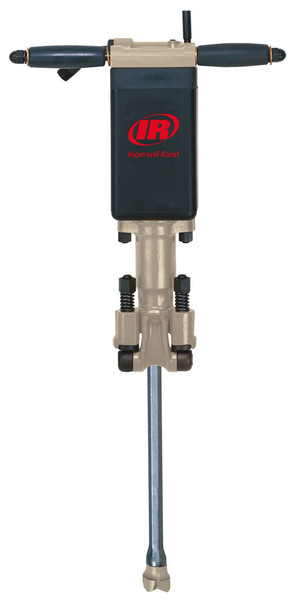

Model | JH40C3 |
Weight w/o Accessory lb (kg) | 61 (27.7) |
Hex Shank Size | 1" x 4-1/4" |
Stroke Length in. (mm) | 2.63" (67) |
Bore Diameter in. (mm) | 2.5" (63.5) |
Max Hole Diameter in. (mm) | 2" (51) |
Max Hole Depth ft. (mm) | 18' (457) |
Blows per Minute | 2,000 |
Length w/o Accessory in. (mm) | 22.5" (572) |
Air Inlet Size (NPT) in. | 3/4" |
Minimum Hose Size in (mm) | 3/4" (19) |
Air Consumption @ Load cfm (L/min) | 115 (3257) |
- Easy access adjustable 3 speed throttle
- Reversible pawls
- Integral muffler
- Rifle bar rotation is simple and positive
Ideal for up holes up to 18 feet (5.5 m) deep and up to 2 inch (51 mm) diameter in hard rock. It is well-suited for blast holes, post holes, anchor holes and other utility, construction, industrial and excavation applications.
![](/images/Irconstructioncover.jpg)
Ingersoll Rand Construction Tools Catalog PDF
To view our complete selection of air and electric drills, click here to return to Drills and Tappers - Home.
CCN Number 50896406
