Description

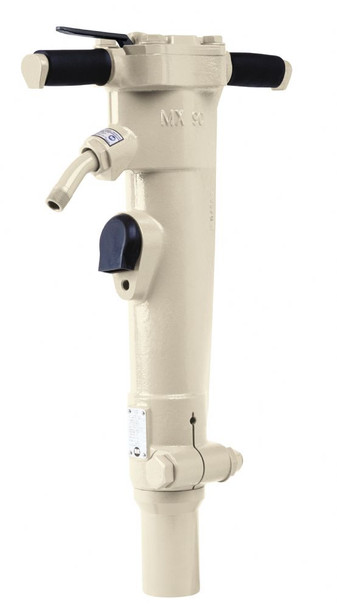

Model | MX90F-SD |
Handle Type | Vibe reduced flex handle |
Weight lb (kg) | 86 (39) |
Stroke Length in. (mm) | 5.75" (146) |
Bore Diameter in. (mm) | 2.62" (66.5) |
Blows per Minute | 1,250 |
Length w/o Accessory in. (mm) | 27.5" (686) |
Air Inlet NPT in. | 3/4" |
Min. Hose Size in. (mm) | 3/4" (19) |
Air Consumption @ Load cfm (L/min) | 85 (2407) |
MX90 Spike Drivers For those crews requiring maximum production, Ingersoll Rand offers the larger MX90 tool with all the same rugged design and performance specifications as the MX60 tool.
![](/images/Irconstructioncover.jpg)
Ingersoll Rand Construction Tools Catalog PDF
CCN Number 51957955
