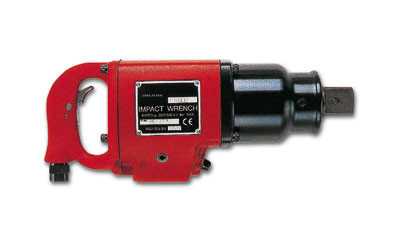

CP6120 GASED Air Impact Wrench | 1 1/2" | 3500 ft.lbs | T018237  | by Chicago Pneumatic

CP6120 GASED - The most productive 1-1/2"

Part number	T018237
Model	CP6120 GASED
Joint type: soft	yes
Joint type: hard	yes
Handle type	D-Handle Outside Trigger
Square drive	1 1/2"
Working Torque Range (fwd)	815-2,710 Nm	600-2,000
Working Torque Range (fwd)	600-2,000 ft.lbs	815-2,710
Maximum Torque (reverse)	4740 Nm	3500 ft.lbs
Maximum Torque (reverse)	3500 ft.lbs	4740 Nm
Free speed	3000 rpm
Blows per minute	960
Net weight	33.9 lb	15.4 kg
Net weight	15.4 kg	33.9 lb
Power/weight ratio	307.8 Nm/kg	103.2 ft.lb/lb
Power/weight ratio	103.2 ft.lb/lb	307.8 Nm/kg
Length	14.76"	375 mm
Length	375 mm	14.76"
Side to center	54 mm	2.13"
Side to center	2.13"	54 mm
Actual air consumption	60 cfm
Actual air consumption	28.3 l/s	60 cfm
Air inlet thread size	0.5 "
Noise level	102 db(A)
Sound Power	113 db(A)
Vibration (ISO-8662-7)	12.4 m/s²
Vibration α (ISO-28927-2)	21 m/s²
Vibration K (ISO-28927-2)	6.6 m/s²
Socket retainer	Hole
Clutch type	2-jaw clutch
Bolt size	M40

Benefits

Best 1-1/2" impact to loosen very big bolts quickly and smoothly

Operator comfort and control thanks to great ergonomics even at VERY high torque

"Constant and progressive" torque due to the 2-Jaw clutch

Unmatched durability with Reliable mechanism and durable housing

Excellent for very demanding industries such as Heavy Industrial Maintenance and Production applications

Features

Super Industrial 1-1/2" impact wrench

Reliable 2-jaw clutch with the highest Blows per Minute

Full Teasing (outside) trigger with durable reverse

Durable aluminum body and indestructible steel clutch housing

Compact 3-part construction and easy maintenance

Hole type socket retainer with O-ring

360degree adjustable D-type side handle

For more information on the CP6120 GASED impact wrench please call Zampini Industrial Group at 1-800-353-4676 and we will be happy to assist you.
