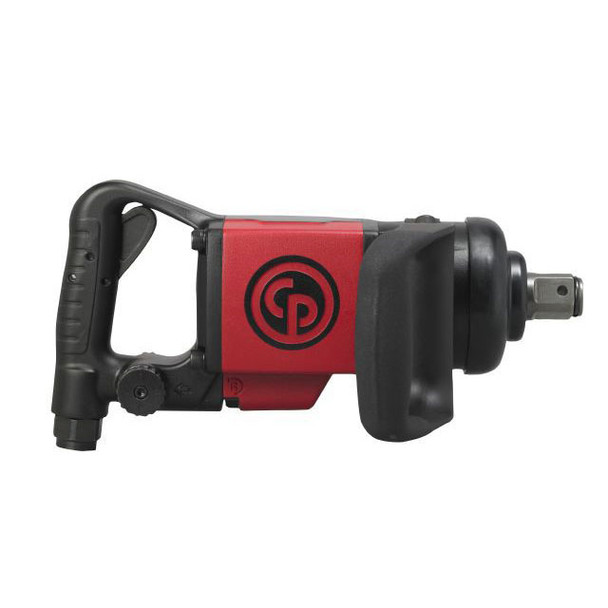

CP7780 Air Impact Wrench | 1" | 1550 ft.lbs | 8941077800  | by Chicago Pneumatic

CP7780 - Lightweight for General Maintenance

Part number	8941077800
Model	CP7780
Handle type	D-Handle Inside Trigger
Square drive	1"
Working Torque Range (fwd)	350-1650 Nm	260-1220
Working Torque Range (fwd)	260-1220 ft.lbs	350-1650
Maximum Torque (reverse)	2100 Nm	1550 ft.lbs
Maximum Torque (reverse)	1550 ft.lbs	2100 Nm
Free speed	5000 rpm
Blows per minute	790
Net weight	15 lb	6.8 kg
Net weight	6.8 kg	15 lb
Power/weight ratio	308.8 Nm/kg	103.3 ft.lb/lb
Power/weight ratio	103.3 ft.lb/lb	308.8 Nm/kg
Length	13.2"	335 mm
Length	335 mm	13.2"
Average air consumption	12 cfm
Average air consumption	5.6 l/s	12 cfm
Actual air consumption	49.8 cfm
Actual air consumption	23.4 l/s	49.8 cfm
Air inlet thread size	0.5 "
Min. hose size	13 mm	1/2"
Min. hose size	1/2"	13 mm
Noise level	94 db(A)
Sound Power	105 db(A)
Vibration α (ISO-28927-2)	15.5 m/s²
Vibration K (ISO-28927-2)	5.9 m/s²
Socket retainer	Dual (hole+friction)
Clutch type	Twin hammer oil bath
Bolt size	M30
Box dimensions	387*221.8*140	15.2*8.7*5.5
Box dimensions	15.2*8.7*5.5	387*221.8*140
Over carton	406*233*303	16*9.2*11.9
Over carton	16*9.2*11.9	406*233*303

Benefits

Maximize operator comfort with a lightweight impact

ergonomic and intuitive handling

High Power to Weight ratio for General Maintenance applications

Features

1" D-Handle impact wrench with Dual retainer (Hole + Ring)

Only 15 lbs (6,8kg) for one the best lightweight tool

Integrated protective cover on the clutch housing

Twin hammer mechanism in oil bath for durability

Double stage trigger and dedicated lever for forward and reverse

ergonomic side handle with soft touch grip

4-position power setting for both directions and on both sides of the tool
