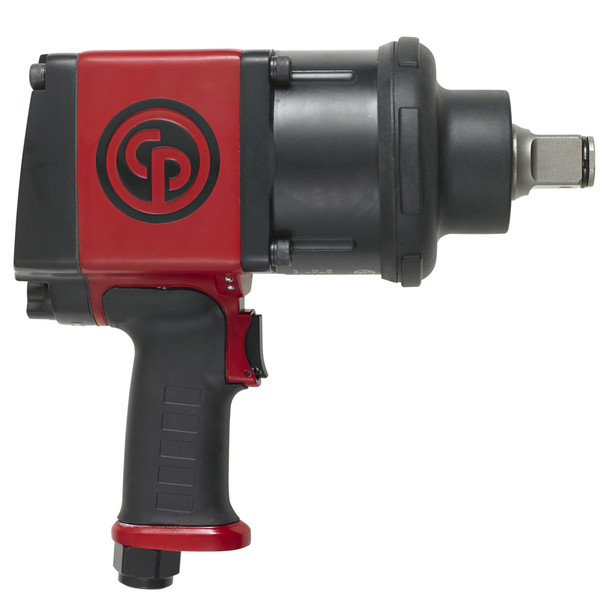

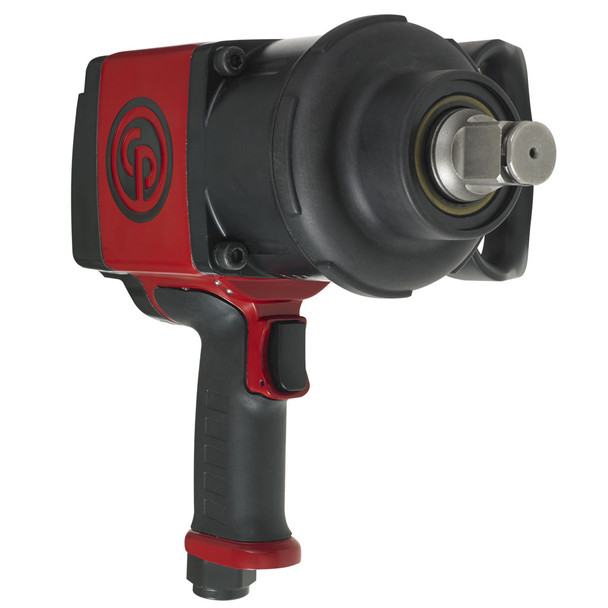

CP7776 Air Impact Wrench | 1" | 1770 ft.lbs | 8941077760  | by Chicago Pneumatic

CP7776 - High Torque & Comfort

Part number	8941077760
Model	CP7776
Handle type	Pistol
Square drive	1"
Working Torque Range (fwd)	955 - 2073  Nm	704 €“ 1530
Working Torque Range (fwd)	704 €“ 1530 ft.lbs	955 - 2073
Maximum Torque (reverse)	2400 Nm	1770 ft.lbs
Maximum Torque (reverse)	1770 ft.lbs	2400 Nm
Free speed	5000 rpm
Net weight	24.7 lb	11.2 kg
Net weight	11.2 kg	24.7 lb
Power/weight ratio	214.3 Nm/kg	71.7 ft.lb/lb
Power/weight ratio	71.7 ft.lb/lb	214.3 Nm/kg
Length	11.4"	289 mm
Length	289 mm	11.4"
Side to center	109 mm	4.3"
Side to center	4.3"	109 mm
Average air consumption	8.2 cfm
Average air consumption	3.9 l/s	8.2 cfm
Actual air consumption	33 cfm
Actual air consumption	15.6 l/s	33 cfm
VST2	271
Air inlet thread size	0.5 "
Min. hose size	13 mm	1/2"
Min. hose size	1/2"	13 mm
Noise level	93 db(A)
Sound Power	104 db(A)
Vibration α (ISO-28927-2)	8.7 m/s²
Vibration K (ISO-28927-2)	2.8 m/s²
Socket retainer	Dual (hole+friction)
Clutch type	Pin less closed rocking dog
Bolt size	M32

Benefits

High Torque and Powerful

Durable

Comfort and Great Handling

Useful

Safe

Features

2400 Nm / 1770 ft.lbs maximum torque in reverse

Pin less closed reinforced rocking dog clutch mechanism

TPR handle and side handle - being able to rotate in 4 positions

Regulator integrated in forward/reverse knob with 3 positions power setting in both directions

Rubber bumper protecting both applications and tool (included)

Socket retainer ring combined with hole retainer

Handle being able to rotate in 4 positions for ultimate operator comfort

Angled down exhaust blows air away from work place

For more information on the CP7776 impact wrench please call Zampini Industrial Group at 1-800-353-4676 and we will be happy to assist you.

Established in 1901, Chicago Pneumatic Tools offers hundreds of quality air tools designed for a wide range of maintenance and production applications: impact wrenches, ratchet wrenches, screwdrivers, drills, grinders, sanders and polishers, cutting tools, and a whole lot more. Based on decades of expertise in providing the right tools, compressors or construction equipment for the toughest demands, CP understand the needs of the professionals for maintaining and repairing heavy equipment and machinery on-site or off-site.

Zampini Industrial Group is proud to be a premier online supplier of Chicago Pneumatic Tools, and our numerous years representing the CP brand has provided us with a wide range of valuable application experiences that we use to help you get the perfect CP tool for your job!
