Description
| Model | 6LP3A43 |
| Height of Head (in) | 3.91 |
| Height of Head (mm) | 99 |
| Chuck Capacity in. | 3/8 |
| Free Speed rpm | 600 |
| Stall Torque Nm | 21.7 |
| Stall Torque in.-lb. | 190 |
| Type | 3/8" Chuck |
| Weight with Chuck kg | 1.70 |
| Side to Center Distance mm | 18 |
| cfm | 20 |
| Side to Center Distance in. | 11/16 |
| Chuck Capacity mm | 10 |
| Length with Chuck in. | 10.63 |
| Length with Chuck mm | 270 |
| Weight with Chuck lb. | 3.75 |
| Air Consumption (L/min) |

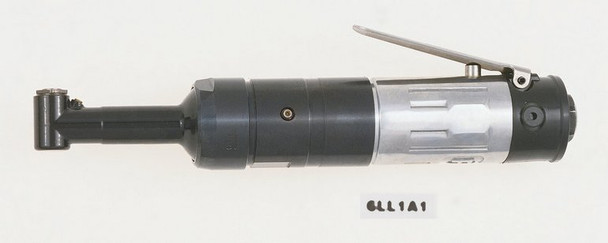

Proven Quality and ReliabilityThe popular 6 Series Angle Drills deliver results day after day. And excellent power-to-weight ratio gets the job done with less fatigue. Available with Aerospace Heads (A1models) or standard chucks.
- Maximum TIR runout of .005" ensures precision holes for critical applications
- Infinitely variable speed allows slow speed starting and high speed drilling
- Angle head may be rotated 360 degree to allow ideal orientation with the throttle
- Ergonomically designed housing provides a secure surface for operator grip
- Modular design allows maximum parts interchangeability and easy, low coast maintenance
For more information on the Ingersoll Rand 6LP3A43 please call AirToolPro / Zampini Industrial Group at 1-800-353-4676
