Description
Model | 7LL3A42 |
Height of Head (in) | 3.66 |
Chuck Capacity in. | 3/8 |
Free Speed rpm | 1550 |
Height of Head (mm) | 93 |
Stall Torque Nm | 11.9 |
Stall Torque in.-lb. | 105 |
Weight with Chuck kg | 1.56 |
Side to Center Distance mm | 18 |
cfm | 26 |
Side to Center Distance in. | 11/16 |
Chuck Capacity mm | 10 |
Length with Chuck in. | 10.38 |
Length with Chuck mm | 263 |
Weight with Chuck lb. | 3.44 |

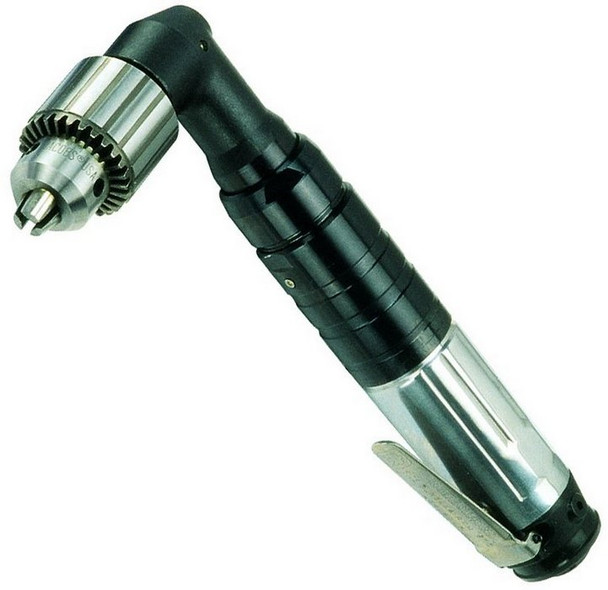

Proven Quality and ReliabilityThe popular 7 Series Angle Drills deliver results day after day. And excellent power-to-weight ratio gets the job done with less fatigue. Available with Aerospace Heads (A1models) or standard chucks.
- Modular design allows maximum parts interchangeability and easy, low coast maintenance
- Infinitely variable speed allows slow speed starting and high speed drilling
- Angle head may be rotated 360 degree to allow ideal orientation with the throttle
- Ergonomically designed housing provides a secure surface for operator grip
For more information on the Ingersoll Rand 7LL3A42 please call AirToolPro / Zampini Industrial Group at 1-800-353-4676
To view our complete selection of air and electric drills, click here to return to Drills and Tappers - Home.
2017 STATUS UPDATE on this item: OBSOLETE
