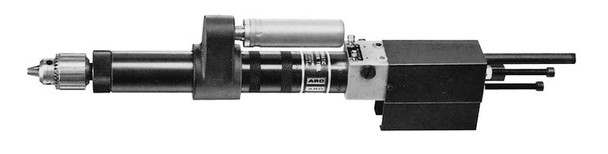

Description
8245-B8-1 Specifications
Model | 8245-B8-1 |
Sound Level dB(A) | 77 |
Air Consp. @ Working Speed ft^3/cycle (L/cycle) | 1.5 ( 42 ) |
Nominal Drilling Capacities Wood, Med. or FRP | 5/16 (7.9) |
Stroke Lengths | 1-1/4" (32 mm) |
Thrust @ 90 PSI lb. (N) | 90 lbs. |
Free Speed rpm | 900 |
Nominal Drilling Capacities Stnls. Steel Type 304 | 3/32 (2.4) |
Std. Chuck Capacity in. (mm) | 1/4" ( 6.4mm ) |
Nominal Drilling Capacities Steel SAE 1213 | 3/16 (4.8) |
Nominal Drilling Capacities Aluminum 2024-T4 | 1/4 (6.4) |
Gear Reduction | Double |
3/16" (4.8 mm) Capacity, Steel 25 HP (.20 kW)
- Built-in four-way valve enables both manual and remote operation.
- Double-acting air piston provides smooth, controlled forward and retract strokes.
- Needle valve controls allows adjustment of forward and retract strokes.
- Adjustment screw provides infinite stroke length settings.
- Ball bearing spindle support offers precision and long service life.
- Muffled exhaust for a quieter work environment.
