Description

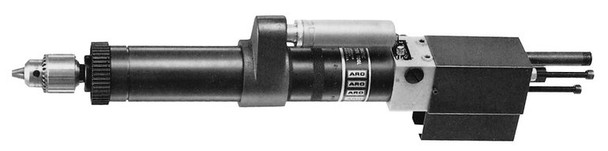

8255-A21-1 Specifications
Model | 8255-A21-1 |
Sound Level dB(A) | 74 |
Air Consp. @ Working Speed ft^3/cycle (L/cycle) | 2.3 (65) |
Nominal Drilling Capacities Wood, Med. or FRP | 5/16 (7.9) |
Stroke Lengths | 1-1/4" (32 mm) |
Thrust @ 90 PSI lb. (N) | 170 lbs. |
Free Speed rpm | 2,100 |
Nominal Drilling Capacities Stnls. Steel Type 304 | 7/64 (2.8) |
Std. Chuck Capacity in. (mm) | 3/8" ( 9.5mm ) |
Nominal Drilling Capacities Steel SAE 1213 | 7/32 (5.6) |
Nominal Drilling Capacities Aluminum 2024-T4 | 9/32 (7.1) |
Gear Reduction | Single |
5/16" (7.9 mm) Capacity, Steel .50 HP (.37kW)
- Built-in four-way valve enables both namual and remote operation.
- Double-acting air piston provides smooth, controlled forward and retract strokes.
- Needle valve controls allows adjustment of forward and retract strokes.
- Adjustment screw provides infinite stroke length settings.
- Ball bearing spindle support offers precision and long service life.
- Muffled exhaust for a quieter work environment.
To view our complete selection of air and electric drills, click here to return to Drills and Tappers - Home.
CCN Number 4159752
