Description
- Operates on 220 or 480 volt, 3-phase
- Full 360-degree movement
- Variable 2-speed motor
- Includes 5 free tap holders (up to 7/8") and/or reducers
- Tap capacity up to 1-1/2": 1/4" to 7/8" at 285 rpm, 7/8" to 1-1/2" at 62 rpm
- Working range 20-78 in; 51-198 cm
- Size 4 Quick Change Chuck
| Model | Description | Working Range | Speed | Size | ||||||||||

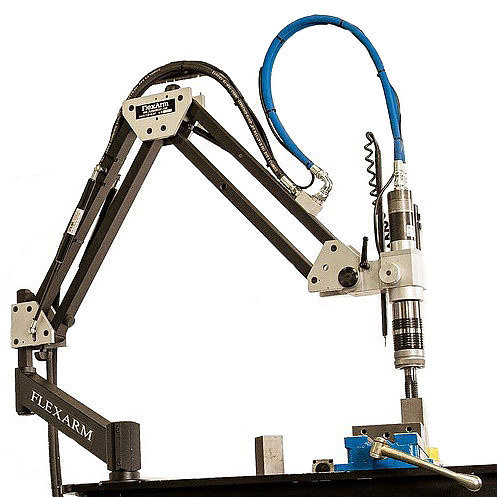

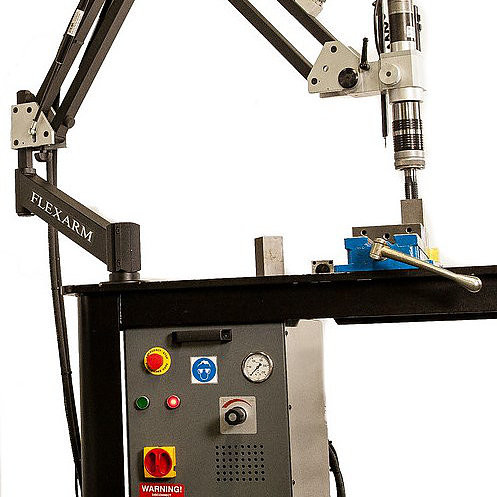

| GH-45 | GH-45 Hydraulic Tapper with Variable 2-Speed Motor, up to 1-1/2" Capacity in Steel, Size 4 Quick Change Chuck | 20 to 78 in | Variable 2-speed motor (300 max. rpm) | Up to 1 1/2 in | ||||||||||
| GHM-45 | GH-45 Hydraulic Multi-position head Tapper with Variable 2-Speed Motor, up to 1-1/2" Capacity in Steel, Size 4 Quick Change Chuck | 20 to 78 in | Variable 2 Speed Motor (300 max. rpm) | Up to 1 1/2 in | ||||||||||
*Tap capacities are for mild steel at 2" max depth using a standard US inch or US metric tap
