Description
- Operates on 220 or 480 volt, 3-phase
- Full 360-degree movement
- Variable 2-speed motor
- Includes 5 free tap holders (up to 7/8") and/or reducers
- Tap capacity up to 2": 1/4" to 1" at 150 rpm, 1" to 2" at 30 rpm
- Working range 20-84 in; 51-213 cm
- Size 4 Quick Change Chuck
|
| Model |
| Description |
| Working Range |
| Speed |
| Size | |||||
|
| ||||||||||||||

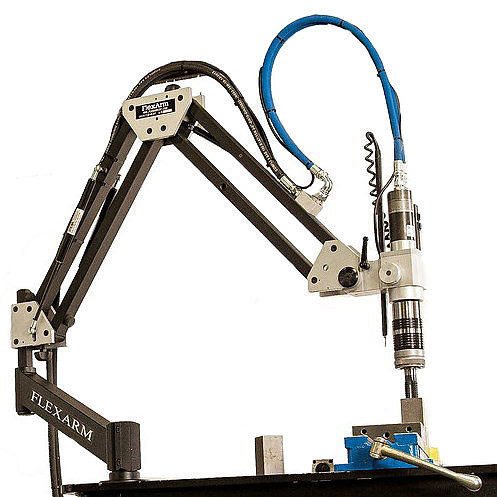

| GH-60 | GH-60 Hydraulic Tapper with variable 2-speed motor, up to 2" capacity in steel, Size 4 Quick Change Chuck | 20 to 84 in | Variable 2-speed (150 max. rpm) | Up to 2 in | ||||||||||
| GHM-60 | GHM-60 Hydraulic Multi-position head Tapper with variable 2-speed motor, up to 2" capacity in steel, Size 4 Quick Change Chuck | 20 to 84 in | Variable 2-speed (150 max. rpm) | Up to 2 in | ||||||||||
*Tap capacities are for mild steel at 2" max depth using a standard US inch or US metric tap
