Description
- 1/2" NPT inlet
- Through-hole socket retainer
- Built-in power regulator
- Pressure-feed mechanism lubrication
- Durable epoxy-coated handle/housing
- Integral muffler
- Twin Hammer mechanism
- Bronze endplates
- Titanium hammer case
- 7-vane reverse bias motor
- Choice of 1" square or No. 5 spline

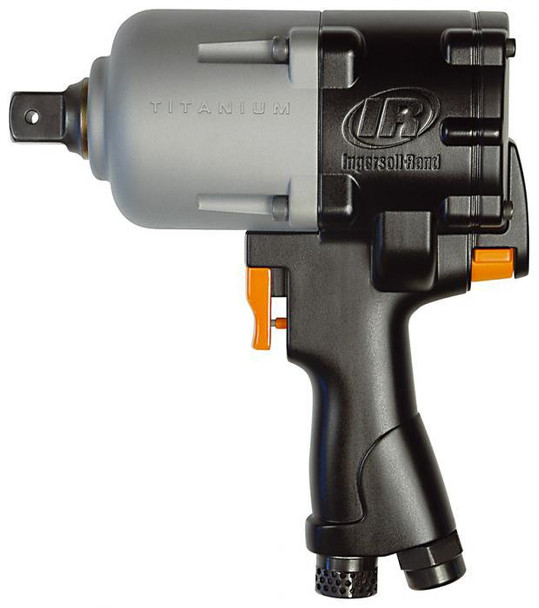

| Model | 3940P2Ti |
| Description | 1" square |
| Handle | Pistol |
| Free Speed rpm | 5,300 |
| Impacts per minute | 800 |
| Max Torque ft-lb (Nm) | 2,500 (3390) |
| Recomm. Torque Range ft-lb (Nm) | 500-1,650 (680-2440) |
| Weight Less Socket lb (kg) | 20.4 (9.3) |
| Length Less Socket in (mm) | 10.1 (256) |
| Side to Center Distance in (mm) | 2.3 (59) |
| Recommended Hose Size in (mm) | 3/4 (19) |
| CFM (L/min) | 64 (1812) |
Super Duty
Additional Part Numbers for the 3940P2Ti:
1FYD6
27112713
0254836
27131501
G0638416
05507445
390095
CCN Number 80162597
Last updated on August 3rd 2021 - ATP115
