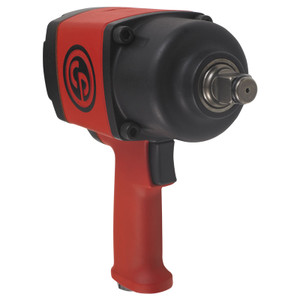

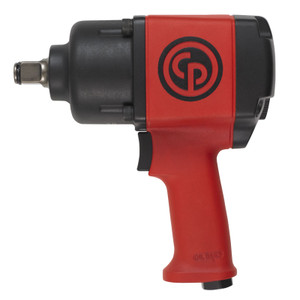

Chicago Pneumatic CP7763 3/4" Impact Wrench | 950 Ft Lbs

Chicago Pneumatic

  • CP7763 Impact Wrench by CP Chicago Pneumatic - 8941077630
  • CP7763 Impact Wrench by CP Chicago Pneumatic - 8941077630 available now at AirToolPro.com
  • CP7763 Impact Wrench by CP Chicago Pneumatic - 8941077630 image at AirToolPro.com
  • Chicago Pneumatic CP7763 3/4" Impact Wrench | 950 Ft Lbs
SKU:
8941077630
Please Call For Pricing and Availability

Description

CP7763 - Compact & Powerful for General Maintenance

Benefits

  • Ideal for General Maintenance applications
  • Powerful motor and durable clutch
  • Operator comfort
  • Features

  • 3/4" impact wrenchwith Ring retainer
  • Twin hammer clutch
  • High power: 1,200 ft.lbs (1,627 Nm)
  • Combined power regulator with forward/reverse


  • Available now at AirToolPro / Zampini Industrial 1-800-353-4676

    Part number8941077630
    ModelCP7763
    Handle typePistol
    Square drive3/4"
    Working Torque Range (fwd)136-1288 Nm100-950
    Working Torque Range (fwd)100-950 ft.lbs136-1288
    Maximum Torque (reverse)1630 Nm1200 ft.lbs
    Maximum Torque (reverse)1200 ft.lbs1630 Nm
    Free speed6300 rpm
    Blows per minute900
    Net weight11.57 lb5.25 kg
    Net weight5.25 kg11.57 lb
    Power/weight ratio310.47619047619 Nm/kg103.71650821089 ft.lb/lb
    Power/weight ratio103.71650821089 ft.lb/lb310.47619047619 Nm/kg
    Length8.8"229 mm
    Length229 mm8.8"
    Side to center45 mm1.8"
    Side to center1.8"45 mm
    Average air consumption7.5 cfm
    Average air consumption3.5 l/s7.5 cfm
    Actual air consumption30 cfm
    Actual air consumption14.2 l/s30 cfm
    Air inlet thread size0.375 "
    Min. hose size13 mm1/2"
    Min. hose size1/2"13 mm
    Noise level96 dBa
    Sound Power107 dBa
    Vibration (ISO-8662-7)9 m/s²
    Vibration α (ISO-28927-2)10.4 m/s²
    Vibration K (ISO-28927-2)4.2 m/s²
    Socket retainerFriction ring
    Clutch typeTwin hammer


    Please Call Us For Your Best Price

    Established in 1901, Chicago Pneumatic Tools offers hundreds of quality air tools designed for a wide range of maintenance and production applications: impact wrenches, ratchet wrenches, screwdrivers, drills, grinders, sanders and polishers, cutting tools, and a whole lot more. Based on decades of expertise in providing the right tools, compressors or construction equipment for the toughest demands, CP understand the needs of the professionals for maintaining and repairing heavy equipment and machinery on-site or off-site.

    Zampini Industrial Group is proud to be a premier online supplier of Chicago Pneumatic Tools, and our numerous years representing the CP brand has provided us with a wide range of valuable application experiences that we use to help you get the perfect CP tool for your job!
