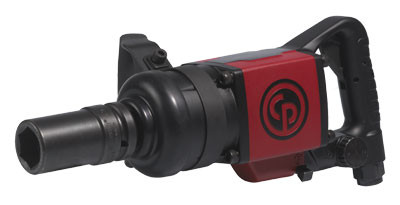

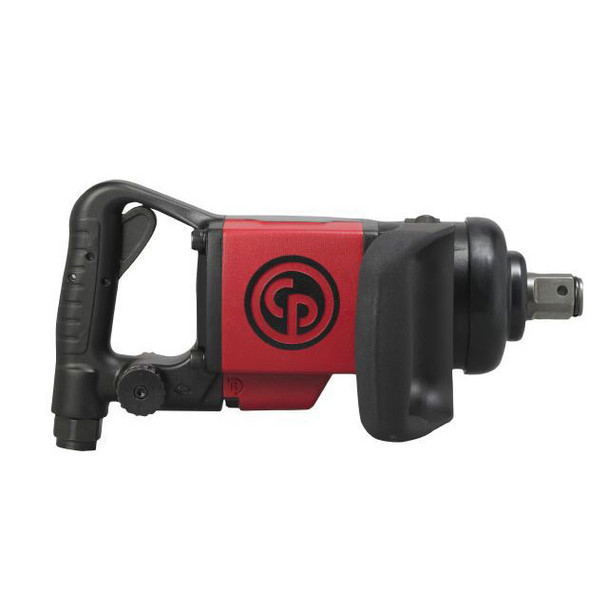

Chicago Pneumatic CP7780 1" Impact Wrench | 1220 Ft Lbs

CP7780 - Lightweight for General Maintenance

Benefits

Maximize operator comfort with a lightweight impact

ergotnomic and intuitive handling

High Power to Weight ratio for General Maintenance applications

Features

1" D-Handle impact wrench with Dual retainer (Hole + Ring)

Only 15 lbs (6,8kg) for one the best lightweight tool

Integrated protective cover on the clutch housing

Twin hammer mechanism in oil bath for durability

Double stage trigger and dedicated lever for forward & reverse

ergotnomic side handle with soft touch grip

4-position power setting for both directions and on both sides of the tool

Available now at AirToolPro / Zampini Industrial 1-800-353-4676

Part number	8941077800
Model	CP7780
Over carton	406*233*303	16*9.2*11.9
Over carton	16*9.2*11.9	406*233*303
Handle type	D-Handle Inside Trigger
Square drive	1"
Working Torque Range (fwd)	350-1650 Nm	260-1220
Working Torque Range (fwd)	260-1220 ft.lbs	350-1650
Maximum Torque (reverse)	2100 Nm	1550 ft.lbs
Maximum Torque (reverse)	1550 ft.lbs	2100 Nm
Free speed	5000 rpm
Blows per minute	790
Net weight	15 lb	6.8 kg
Net weight	6.8 kg	15 lb
Power/weight ratio	308.823529411765 Nm/kg	103.333333333333 ft.lb/lb
Power/weight ratio	103.333333333333 ft.lb/lb	308.823529411765 Nm/kg
Length	13.2"	335 mm
Length	335 mm	13.2"
Average air consumption	12 cfm
Average air consumption	5.6 l/s	12 cfm
Actual air consumption	49.8 cfm
Actual air consumption	23.4 l/s	49.8 cfm
Air inlet thread size	0.5 "
Min. hose size	13 mm	1/2"
Min. hose size	1/2"	13 mm
Noise level	94 dBa
Sound Power	105 dBa
Vibration α (ISO-28927-2)	15.5 m/s²
Vibration K (ISO-28927-2)	5.9 m/s²
Socket retainer	Dual
Clutch type	Twin hammer oil bath
Bolt size	M30
Box dimensions	387*221.8*140	15.2*8.7*5.5
Box dimensions	15.2*8.7*5.5	387*221.8*140

Please Call Us For Your Best Price

Established in 1901, Chicago Pneumatic Tools offers hundreds of quality air tools designed for a wide range of maintenance and production applications: impact wrenches, ratchet wrenches, screwdrivers, drills, grinders, sanders and polishers, cutting tools, and a whole lot more. Based on decades of expertise in providing the right tools, compressors or construction equipment for the toughest demands, CP understand the needs of the professionals for maintaining and repairing heavy equipment and machinery on-site or off-site.

Zampini Industrial Group is proud to be a premier online supplier of Chicago Pneumatic Tools, and our numerous years representing the CP brand has provided us with a wide range of valuable application experiences that we use to help you get the perfect CP tool for your job!
