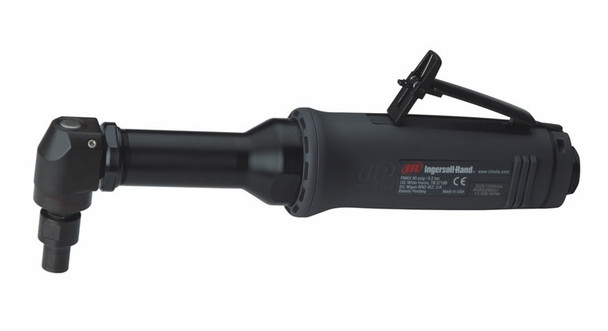

Ingersoll Rand G2E135RG4 G2 Series Extended Angle Grinder - 0.8 hp- 13,500 rpm - 1/4" Collet

Ingersoll Rand

Write a Review
SKU:
G2E135RG4
Availability:
Please Call For Pricing and Availability
$0.00

Description

  • Suited for heavier-duty grinding, cutting, cleaning, and polishing applications
  • Ergonomic D-shaped handle for operator comfort
  • Laser-etched product information won’’t wear off
  • G2 = Power hp (G1- 0.4 , G2- 0.8 , G3- 1.35)


    A = Model Config. (A- Angle Grinder, E- Ext. Angle Grinder Small, L- Ext. Angle Grinder Large, H- Horrizontal No Nxtension, X- Extended Hor. Grinder, XX- Double Bearing Ext. Horr., S- 2” Extension )


    180 = Free Speed (18,000 rpm)


    R = Exhaust Direction (R- rear, F- front, P- piped away)


    P = Output Type (P- Type 27, Type 1, Collet Tools, Sander Arbor)


    10 = Output Size -Type 27 Tools (5- 3/8” arbor Metric[for 80mmx10mm], 6- 3/8” arbor English, 7- 3/8” arbor Metric[for 100mm, 125mm, or 150mm x 22.2mm], or 10- 5/8”)


    45 = Guard Sizes (3- 3” guard, 4- 4” guard, 45- 4.5” guard, 5- 5” guard, 6- 6” guard)



  • 1/4” Erickson collet
  • Big Power in a small package
  • Ergonomic low-profile locking throttle lever for operator safety
  • Composite housing prevent cold feel for operator comfort
  • Easy to service one nut removal for motor repair
  • Dual exhaust capabilities
  • Collet body wrench Collet nut wrench



Model G2E135RG4
Rated Power hp (kW) 0.8 (0.6)
Max Free Speed (rpm) 13,500
Exhaust Rear
Output 1/4" Collet
Wheel Size in. (mm) N/A
Weight lbs. (kg) 2.6 (1.1)
Length in. (mm) 10.38" (263)
Vibration m/s2 5.1, uncertainty: 0.9
Sound Pressure/Power dBA 85.4 / 96.4
Average Air Consumption cfm (L/min)
Air Consumption @ Load cfm (L/min) 36 (1020)
Air Inlet Size NPT in. 1/4"
Min Hose Size in. (mm) 3/8" (10)


Perfect for big jobs, the G2-Series performs at an impressive 0.80 hp (0.60 kW). The G2-Series also features low noise and vibration levels and one-nut access for all motor servicing.
Available Now at Zampini Industrial.
Please call us for your best pricing and current delivery time.


CCN Number 10568632
