Description
- Suited for heavier-duty grinding, cutting, cleaning, and polishing applications
- Ergonomic D-shaped handle for operator comfort
- Laser-etched product information won’’t wear off
- G2 = Power hp (G1- 0.4 , G2- 0.8 , G3- 1.35)
A = Model Config. (A- Angle Grinder, E- Ext. Angle Grinder Small, L- Ext. Angle Grinder Large, H- Horrizontal No Nxtension, X- Extended Hor. Grinder, XX- Double Bearing Ext. Horr., S- 2” Extension )
120 = Free Speed (12,000 rpm)
R = Exhaust Direction (R - rear, F - front, P - piped away)
P = Output Type (P - Type 27, H - Type 1, G - Collet Tools, S - Sander Arbor)
10 = Output Size -Type 27 Tools (6 - 3/8”-24 thread arbor English, 7 - 3/8”-24 thread arbor Metric [for 100mm, 125mm, or 150mm x 22.2mm], or 10 - 5/8”-11 thread arbor English,) Type 1 Tools (6 - 3/8"-24 thread arbor English) Collet Tools (4 - 1/4" collet) Sanders (4 - 1/4"-20 thread, 418 - 1/4" x 18" , 812 - 1/2" x 12", 818 - 1/2" x 18")
45 = Guard Sizes (3- 3” guard, 4- 4” guard, 45- 4.5” guard, 5- 5” guard, 6- 6” guard) - Dual exhaust capabilities
- Ergonomic low-profile locking throttle lever for operator safety
- Composite housing prevent cold feel for operator comfort
- Easy to service one nut removal for motor repair

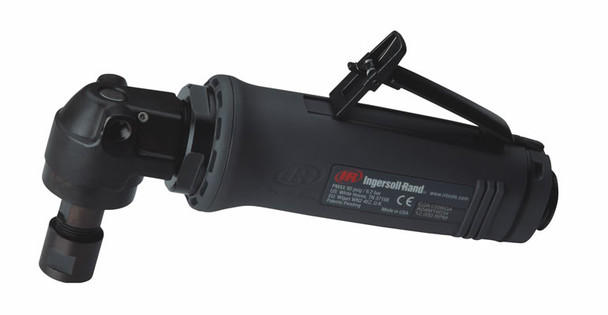

| Model | G2A180RG4 |
| Rated Power hp (kW) | 0.8 (0.6) |
| Max Free Speed (rpm) | 18,000 |
| Exhaust | Rear |
| Output | 1/4" Collet |
| Wheel Size in. (mm) | N/A |
| Weight lbs. (kg) | 2.3 (1.0) |
| Length in. (mm) | 7.75 (196) |
| Vibration m/s2 | 7.9, uncertainty: 2.1 |
| Sound Pressure/Power dBA | 84.6 / 95.6 |
| Average Air Consumption cfm (L/min) | |
| Air Consumption @ Load cfm (L/min) | 36 (1020) |
| Air Inlet Size NPT in. | 1/4" |
| Min Hose Size in. (mm) | 3/8" (10) |
Perfect for big jobs, the G2-Series performs at an impressive 0.80 hp (0.60 kW). The G2-Series also features low noise and vibration levels and one-nut access for all motor servicing.
Available Now at Zampini Industrial.
Please call us for your best pricing and current delivery time.
2017 STATUS UPDATE on this item: SUPERCEDED BY M2A180RG4
