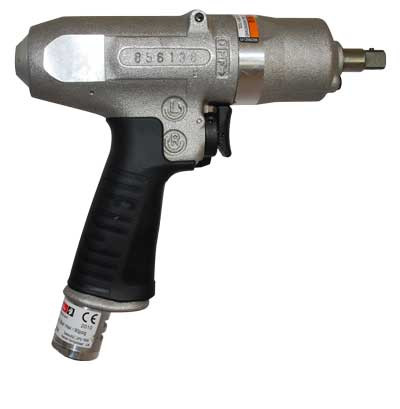

6151720770 PTF096-T4600-I13S 1/2" by Desoutter Tools

Desoutter

SKU:
6151720770
Availability:
Please Call For Pricing and Availability
Please Call For Pricing and Availability

Description


Part number 6151720770
Model PTF096-T4600-I13S
Output drive 1/2 " Sq."
Free speed 4600 rpm
Torque range 52-96  Nm 38.3-70.8
Torque range 38.3-70.8  ft.lbs 52-96
Operation Push start
Type of tool Pistol
Clutch type Non shut off
Net weight 1.45 kg 3.2 lb
Net weight 3.2 lb 1.45 kg
Length 173 mm 6.8"
Length 6.8" 173 mm
Height 175 mm 6.9"
Height 6.9" 175 mm
Side to center 27 mm 1.06"
Side to center 1.06" 27 mm
Min. hose size 10 mm 3/8"
Min. hose size 3/8" 10 mm
Actual air consumption 10.8 l/s 22.9 cfm
Actual air consumption 22.9 cfm





Desoutter Air and Electric Industrial Tools Banner

Desoutter Industrial Tools are some of the finest tools available for production and manufacturing tool applications. AirToolPro.com by Zampini Industrial Group is a premier distributor of Desoutter Air and Electric Tools, and has been a trusted Desoutter Partner since 1987! From precision torque screwdrivers to DC Electric systems to proven high performance air grinders, Desoutter has you covered. Desoutter tools have best in class performance, fit, and finish, and they are designed to achieve the impressive goals below as thoroughly as possible:

- Good Balance - Minimize Vibration
- Low Weight - Minimize Exhaust Air Jet
- Minimize Torque Reaction - Maximize Power To Weight Ratio
- Thermal Insulation - Minimize Oil From Exhaust
- Minimize Torque Impulse - Appropriate Size
- Minimize Necessary Trigger Loading - Excellent Grip
