Description
Model | SL023B-15-Q |
Free Speed rpm | 1500 |
Spindle Offset in. | .60 |
Torque Range-Soft Draw In.-lbs | 4-20 |
Type | Lever Throttle |
Air Consp. @ Free Speed L/s | 7 |
Tool Length mm | 217 |
Sound Level dB(A) @ Free Speed | 76 |
Weight lb | 1.3 |
Tool Weight kg | .6 |
Spindle Offset mm | 15 |
Air Consp. @ Free Speed cfm | 15 |
Length in. | 8.5 |
Torque Range-Soft Draw Nm | .5-2.3 |
Torque Output: 4 to 30 In.-lbs ( 0.5 to 3.4 Nm ) Adjsutable Cushion Clutch
- Recommended for assembling that requires a torque limiting clutch.

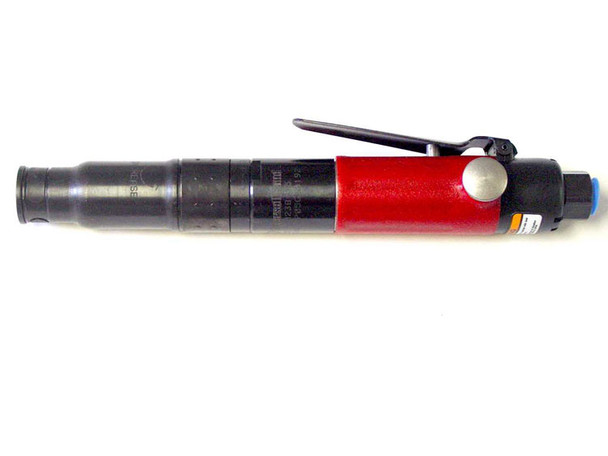

For more information on the Ingersoll Rand SL023B-15-Q please call AirToolPro / Zampini Industrial Group at 1-800-353-4676
CCN Number 4050597
