Description

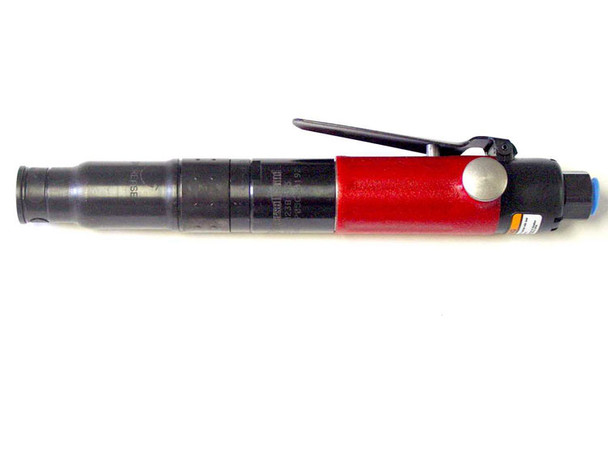

| Model | SL023B-26-Q |
| Free Speed rpm | 2600 |
| Spindle Offset in. | .60 |
| Torque Range-Soft Draw In.-lbs | 4-12 |
| Type | Lever Throttle |
| Air Consp. @ Free Speed L/s | 7 |
| Tool Length mm | 208 |
| Sound Level dB(A) @ Free Speed | 76 |
| Weight lb | 1.2 |
| Tool Weight kg | .5 |
| Spindle Offset mm | 15 |
| Air Consp. @ Free Speed cfm | 15 |
| Length in. | 8.2 |
| Torque Range-Soft Draw Nm | .5-1.4 |
Torque Output: 4 to 30 In.-lbs ( 0.5 to 3.4 Nm ) Adjsutable Cushion Clutch
- Recommended for assembling that requires a torque limiting clutch.
For more information on the Ingersoll Rand SL023B-26-Q please call AirToolPro / Zampini Industrial Group at 1-800-353-4676
CCN Number 4050639
