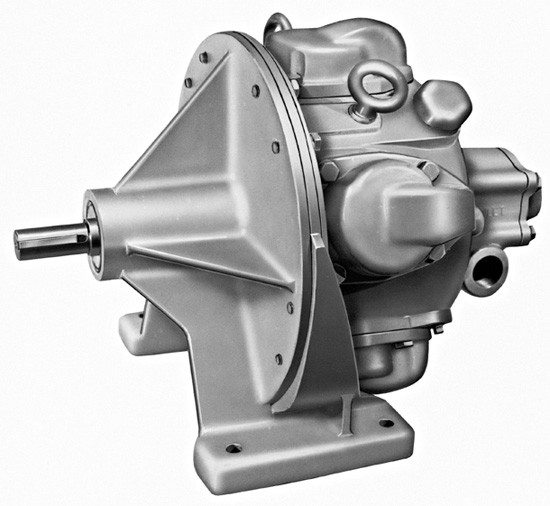

EE59G Radial Piston Air Motor Specifications
Model | EE59G |
Starting Torque lb.-ft. | 450 |
Weight lb. | 230 |
Speed at Max. Power (rpm) | 100 |
Air Consumption at Max. Power (scfm) | 220 |
Free Speed rpm | 200 |
Stall Torque Nm | 814 |
Air Consumption at Max. Power (m^3/m) | 6.2 |
Weight kg | 104 |
Stall Torque lb.-ft. | 600 |
Starting Torque Nm | 610 |
Max. Power kw | 4.85 |
Max. Power hp | 6.5 |
- Ingersoll Rand piston air motors are ideally suited for applications where there is a lot of resistance and variability such as winch and high capacity hoist.
- Gear reduction models available on the EE series
- Will not burn out: Radial Piston Air Motors can be stalled or overloaded for long periods without damage.
- Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive applications.
- Instantly reversible: A four-way valve allows instant motor reversal (on reversible units) with the turn of a valve.
- Cool Running: A running air motor expands air, allowing motors to operate in temperatures up to 150oF and some motors up to 300oF with special grease, lube and seals.
- Compact and Portable: Get maximum horsepower in minimum size.
- Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
- Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean, dry, lubricated air supply.
- No shock starts: Air cushioned start-up cuts stress to your equipment.
- Do not see what you need or want help with your selection: Call us with your requirements. We have hundreds of motors from which we can select. In many cases, we can provide ??special? non-cataloged motors for unique applications.
To view our complete selection of pneumatic air motors, return to Air Motors - Home.
CCN Number 1031871
Last updated on August 3rd 2021 - ATP115
Additional Information
Line: |
CC-KK Series Air Motors |
Max Power (hp): |
6.5 |
Reversible: |
Yes |
Torque Stall (ft lb): |
600 |
Free Speed (rpm): |
200 |
Torque Output @ Max. H.P. (ft-lb): |
300 |
Speed at Max. Power (rpm): |
100 |
