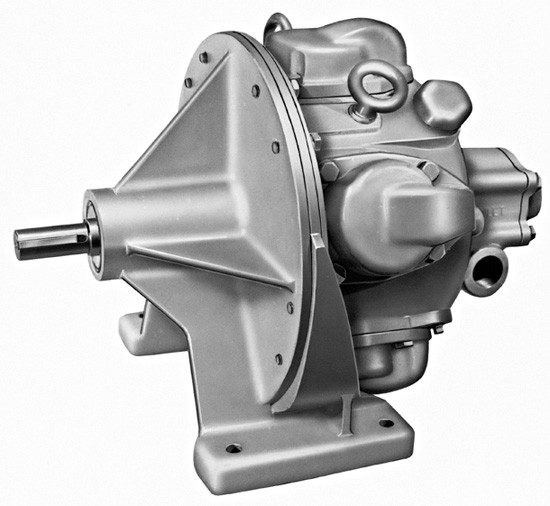

EE5M Radial Piston Air Motor by Ingersoll Rand

EE5M Specifications

Model	EE5M
Starting Torque lb.-ft.	60
Weight lb.	210
Speed at Max. Power (rpm)	950
Air Consumption at Max. Power (scfm)	220
Free Speed rpm	1875
Stall Torque Nm	109.2
Air Consumption at Max. Power (m^3/m)	6.2
Weight kg	95.3
Stall Torque lb.-ft.	80.5
Starting Torque Nm	81.4
Max. Power kw	5.82
Max. Power hp	7.8

• Piston motors are ideally suited for applications where there is a lot of resistance and variability such as winch and high capacity hoist.
• Gear reduction models available on the EE series
• Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
• Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive applications.
• Instantly reversible: A four-way valve allows instant motor reversal (on reversible units) with the turn of a valve.
• Cool Running: A running air motor expands air, allowing motors to operate in temperatures up to 150oF and some motors up to 300oF with special grease, lube and seals.
• Compact and Portable: Get maximum horsepower in minimum size.
• Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
• Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean, dry, lubricated air supply.
• No shock starts: Air cushioned start-up cuts stress to your equipment.
• Do not see what you need or want help with your selection: Call us with your requirements. We have hundreds of motors from which we can select. In many cases, we can provide ƒ??specialƒ? non-cataloged motors for unique applications.

To view our complete selection of pneumatic air motors, return to Air Motors - Home.
CCN Number 1030931
