Description

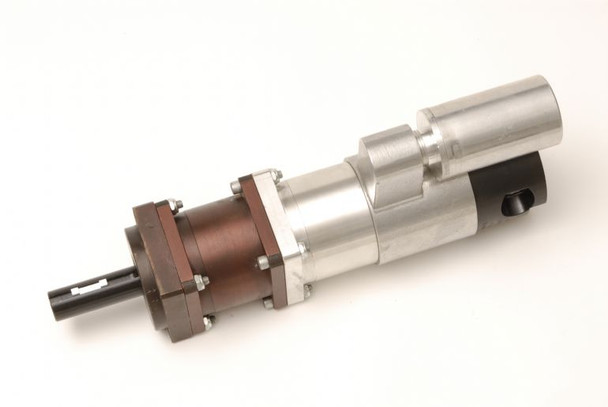

8202-A Specifications
| Model | 8202-A |
| Air Consumption at Max. Power (scfm) | 95.0 |
| Free Speed rpm | 900 |
| Weight lbs. | 18.24 |
| Torque Output @ Max. H.P.(lb.ft.) | 24.00 |
| Spindle | 7/8" Keyed |
| Sound Level @ Free Speed dB(A) | 80 |
| Reversible | No |
| Torque Stall (Nm) | 54.9 |
| Weight kg. | 8.20 |
| Air Consumption @ Free Speed cfm (L/min) | 44.8 |
| Torque Output @ Max. H.P.(Nm) | 32.5 |
| Torque Stall (lb.ft.) | 40.50 |
| Load Speed @ Max. H.P. (Rpm) | 445 |
| Gear Reduction | Double |
- Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
- Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive applications.
- Instantly reversible: A four-way valve allows instant motor reversal (on reversible units) with the turn of a valve.
- Cool Running: A running air motor expands air, allowing motors to operate in temperatures up to 150oF and some motors up to 300oF with special grease, lube and seals.
- Compact and Portable: Get maximum horsepower in minimum size.
- Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
- Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean, dry, lubricated air supply.
- No shock starts: Air cushioned start-up cuts stress to your equipment.
- Do not see what you need or want help with your selection: Call us with your requirements. We have hundreds of motors from which we can select. In many cases, we can provide ??special? non-cataloged motors for unique applications.
- Options for thread on Male Square adapter
- Exhaust manifold and muffler rotates 360 degrees
- Foot Bracket Option
To view our complete selection of pneumatic air motors, return to Air Motors - Home.
CCN Number 4158747
