Description

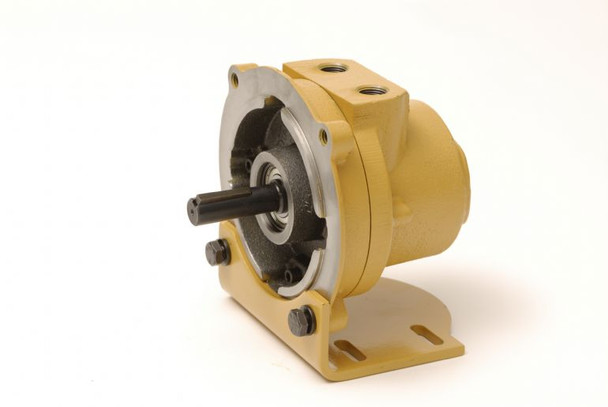

MOV005AA Specifications
Model | MOV005AA |
Max Power hp | 0.75 |
Max Power kw | 0.56 |
Speed at Max. Power (rpm) | 3300 |
Free Speed (rpm) | 6800 |
Starting Torque lb.-ft. | 1.65 |
Starting Torque Nm | 2.2 |
Stall Torque (ft.-lb.) | 2.2 |
Stall Torque Nm | 2.98 |
Air Consumption at Max. Power (scfm) | 30 |
Air Consumption at Max. Power (m^3/m) | 0.84 |
Weight lb. | 6.5 |
Weight (kg) | 2.95 |
- Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
- Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive environments.
- Instantly reversible.
- Compact and portable: Get maximum horsepower in minimum size.
- Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
- Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean air supply and proper lubrication.
- No shock starts: Air cushioned start-up cuts stress on your equipment.
- Mounting options: Face and foot mount.
To view our complete selection of pneumatic air motors, return to Air Motors - Home.
