Description

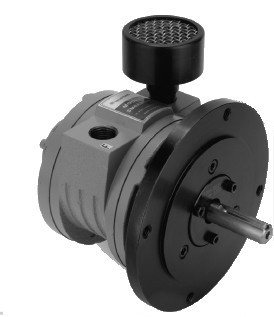

SM8AM Specifications
| Model | SM8AM |
| Max Power hp | 4.8 |
| Max Power kw | 3.6 |
| Speed at Max. Power (rpm) | 2500 |
| Starting Torque lb.-ft. | 10 |
| Starting Torque Nm | 13.6 |
| Stall Torque (ft.-lb.) | 14 |
| Stall Torque (Nm) | 19 |
| Air Consumption at Max. Power m^3/m | 4.3 |
| Weight (lb) | 22.5 |
| Weight, (kg) | 10.2 |
- Lube Free airline operation for most applications.
- Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
- Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive applications.
- Instantly reversible.
- Compact and portable: Get maximum horsepower in minimum size.
- Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
- Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean air supply.
- No shock starts: Air cushioned start-up cuts stress to your equipment.
- Do not see what you need, want help with your selection: Call us with your requirements. We have hundreds of motors from which we can select. IN many cases, we can provided ?special? non-cataloged motors for unique applications.
Call our technical support group in White House Tennessee at 1-800-866-5457. - Mounting options: NEMA flange, face, and foot mount.
