Description

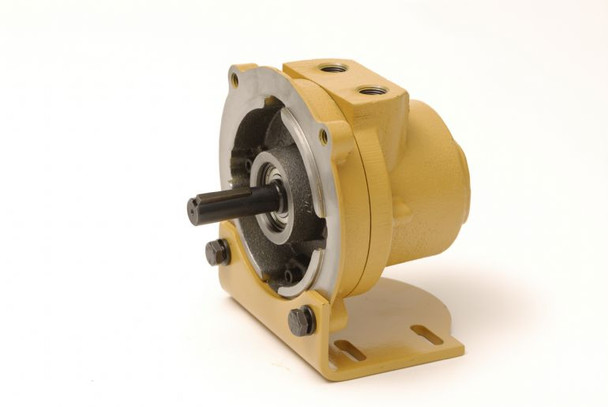

MOV075AA Specifications
| Model | MOV075AA |
| Max Power hp | 10.5 |
| Max Power kw | 7.8 |
| Speed at Max. Power (rpm) | 2600 |
| Free Speed (rpm) | 5600 |
| Starting Torque lb.-ft. | 22.5 |
| Starting Torque Nm | 30.5 |
| Stall Torque (ft.-lb.) | 30 |
| Stall Torque Nm | 40.7 |
| Air Consumption at Max. Power (scfm) | 260 |
| Air Consumption at Max. Power (m^3/m) | 7.36 |
| Weight lb. | 64 |
| Weight (kg) | 29 |
- Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
- Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive environments.
- Instantly reversible.
- Compact and portable: Get maximum horsepower in minimum size.
- Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
- Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean air supply and proper lubrication.
- No shock starts: Air cushioned start-up cuts stress on your equipment.
- Mounting options: Face and foot mount.
