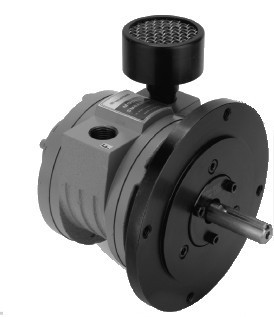

SM1UP Specifications
Model | SM1UP |
Max Power hp | 0.60 |
Max Power kw | 0.37 |
Speed at Max. Power (rpm) | 6000 |
Starting Torque lb.-ft. | 0.45 |
Starting Torque Nm | 0.6 |
Stall Torque (ft.-lb.) | 0.6 |
Stall Torque (Nm) | 0.81 |
Air Consumption at Max. Power m^3/m | 1.2 |
Weight (lb) | 1.75 |
Weight, (kg) | 0.8 |
- Lube Free airline operation for most applications.
- Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
- Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive applications.
- Instantly reversible.
- Compact and portable: Get maximum horsepower in minimum size.
- Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
- Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean air supply.
- No shock starts: Air cushioned start-up cuts stress to your equipment.
- Do not see what you need, want help with your selection: Call us with your requirements. We have hundreds of motors from which we can select. IN many cases, we can provided ?special? non-cataloged motors for unique applications.
Call our technical support group in White House Tennessee at 1-800-866-5457. - Mounting options: NEMA flange, face, and foot mount.
