Description

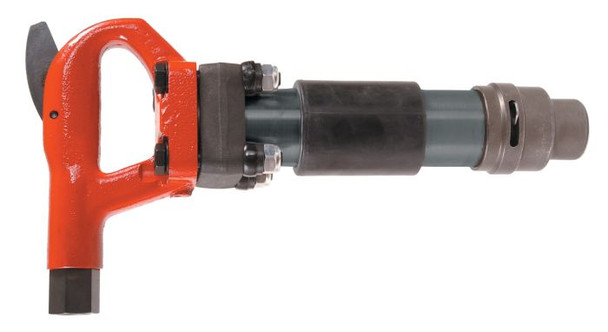

Favored by both contractors and industrial users, ATP 4 bolt pneumatic chipping hammers are heavy duty tools for the most demanding applications. Their crisp, smooth valve operation produces extra hard hitting power, while the heat treated alloy steel cylinder and piston provide long life.
Features:
• Heavy duty 4 bolt steel handles
• Available with either hex or round chisel bushings
Standard Equipment:
• Oval Collar Retainer P/N 250012-525
• Spring P/N 250012-529
Specifications:
|
Bore in |
1-1/8 |
|---|---|
|
Stroke - in |
4-1/4 |
|
Bore mm |
28.6 |
|
Stroke mm |
108.0 |
|
Blows Per min |
1700 |
|
Chisel Bushing |
.580 Hex |
|
Handle & Type |
4 Bolt D |
|
Handle Material |
Steel |
|
Retainer |
Oval Collar |
|
Overall Length - in |
16.5 |
|
Overall Length mm |
419.1 |
|
Net Weight lb |
19.5 |
|
Net Weight kg |
8.85 |
|
Air Inlet NPT in |
1/2 |
|
Hose ID in |
1/2 |
|
Hose ID mm |
13 |
|
Performance Pressure PSIG |
90 |
|
Performance Pressure Bar |
6.2 |
|
Air Consumption cfm |
33 |
|
Air Consumption l/min |
934 |
Please Call Us For Your Best Price
