Description

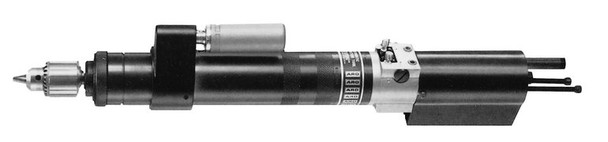

8265-171-1 Specifications
| Model | 8265-171-1 |
| Sound Level dB(A) | 77 |
| Air Consp. @ Working Speed ft^3/cycle (L/cycle) | 2.9 ( 82 ) |
| Nominal Drilling Capacities Wood, Med. or FRP | 3/32 (2.4) |
| Stroke Lengths | 1-1/2" (38 mm) |
| Thrust @ 90 PSI lb. (N) | 250 lbs. |
| Free Speed rpm | 17,000 |
| Nominal Drilling Capacities Stnls. Steel Type 304 | |
| Std. Chuck Capacity in. (mm) | 3/8" ( 9.5mm ) |
| Nominal Drilling Capacities Steel SAE 1213 | 1/64 (0.4) |
| Nominal Drilling Capacities Aluminum 2024-T4 | 3/32 (2.4) |
| Gear Reduction | Single |
1/2" (12.7 mm) Capacity, Steel .75 HP (.56 kW)
- Built-in four-way valve enables both namual and remote operation.
- Double-acting air piston provides smooth, controlled forward and retract strokes.
- Needle valve controls allows adjustment of forward and retract strokes.
- Adjustment screw provides infinite stroke length settings.
- Ball bearing spindle support offers precision and long service life.
- Muffled exhaust for a quieter work environment.
To view our complete selection of air and electric drills, click here to return to Drills and Tappers - Home.
CCN Number 4160248
