Description
- Operates on 220 or 480 volt, 3-phase
- Full 360-degree movement
- Variable speed motor 100-500rpm
- Includes 5 free tap holders (up to 7/8") and/or reducers
- Tap capacity #6 to 7/8"
- Working range 20-76 in; 51-193 cm
- Size 2 Quick Change Chuck
This hydraulic unit is integrated into the worktable for quick and easy portability. Looking for a portable electric tapping option? The FlexArm GH-24 is your tapping solution: operates on 220- or 480-volt, 3-phase.
| Model |
| Description |
| Capacity |
| Power |
| Range of Motion | |
| ||||||||||

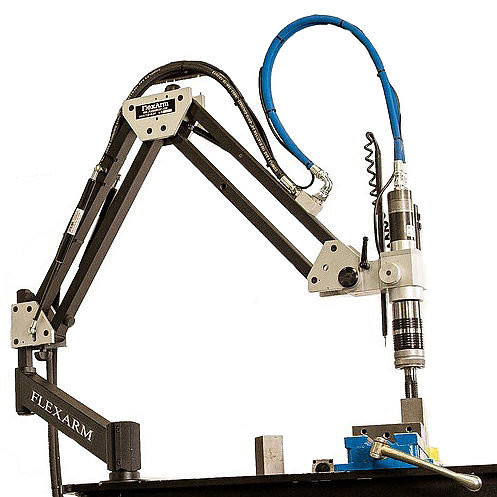

GH-24 | GH-24 Hydraulic Tapper with variable speed 100-500 rpm motor, up to 7/8" capacity in steel, size 2 Quick Change Chuck | up to 7/8 | 220/480 V, 3 phase | Full 360º | ||||||
GHM-24 | GH-24 Multi-position head Hydraulic Tapper with variable speed 100-500 rpm motor, up to 7/8" capacity in steel, size 2 Quick Change Chuck | up to 7/8 | 220/480 V, 3 phase | Full 360º |
*Tap capacities are for mild steel at 2" max depth using a standard US inch or US metric tap
