Description
Model | 8515-BPR-D |
Stall Torque (in.-lbs) | 50 |
Torque Range Soft Draw Nm | |
Free Speed rpm | 1500 |
Spindle Offset in. | .9 |
Stall Torque Nm | 5.7 |
Tool Length mm | 208 |
Sound Level dB(A) @ Free Speed | 82 |
Torque Range Soft Draw in.-lbs | |
Weight lb | 2.8 |
Tool Weight kg | 1.3 |
Spindle Offset mm | 23 |
Air Consp. @ Free Speed cfm | 27 |
Length in. | 8.2 |
Air Consp. @ Free Speed L/sec | 12.7 |
Torque Output: 45 to 110 in.-lbs ( 5.1 to 12.5 Nm ) Quick Reverse Trigger - Direct Drive
- Recommended for soft pull applications not requiring critical torque control.

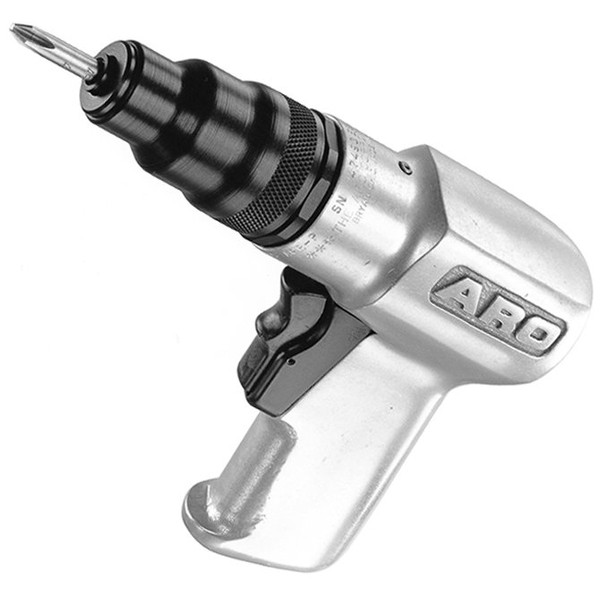

For more information on the Ingersoll Rand 8515-BPR-D please call AirToolPro / Zampini Industrial Group at 1-800-353-4676
CCN Number 4163069
