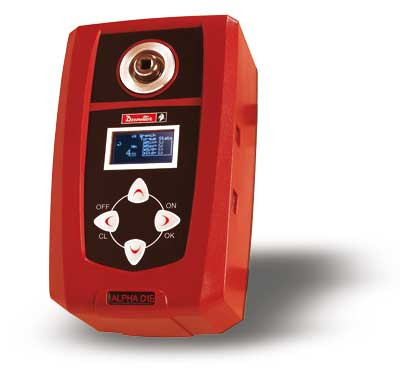

Desoutter ALPHA D16 Torque and Angle Measuring Unit

Part number	6159351060
Model	ALPHA D16
Torque range	1.6 - 16 Nm	14.1 - 141.6
Torque range	14.1 - 141.6 ft.lbs	1.6 - 16
Net weight	0.95 kg	2.1 lb
Net weight	2.1 lb	0.95 kg
Width	180 mm	7.09"
Width	7.09"	180 mm
Depth	106 mm	4.17"
Depth	4.17"	106 mm
Height	70 mm	2.76"
Height	2.76"	70 mm

Features

Accuracy ± 1% of reading from 20% to 100% of full scale

Built-in torque transducer

For all small hand tools & non impacting power tools

Selection of two operation modes: (Track, Peak)

Four units of torque measurements: (lbf.in, cN.m, N.m, kgf.cm)

Four low-pass filter selections (3000, 1500, 1000 and 500 Hz)

Battery powered with up to 12 hours of operation

RS-232 interface to download readings in «real time»

Large screen and easy to use menus (5 languages)

Desoutter Industrial Tools are some of the finest tools available for production and manufacturing tool applications. AirToolPro.com by Zampini Industrial Group is a premier distributor of Desoutter Air and Electric Tools, and has been a trusted Desoutter Partner since 1987! From precision torque screwdrivers to DC Electric systems to proven high performance air grinders, Desoutter has you covered. Desoutter tools have best in class performance, fit, and finish, and they are designed to achieve the impressive goals below as thoroughly as possible:

- Good Balance	- Minimize Vibration
- Low Weight	- Minimize Exhaust Air Jet
- Minimize Torque Reaction	- Maximize Power To Weight Ratio
- Thermal Insulation	- Minimize Oil From Exhaust
- Minimize Torque Impulse	- Appropriate Size
- Minimize Necessary Trigger Loading	- Excellent Grip
