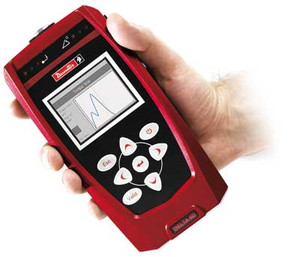

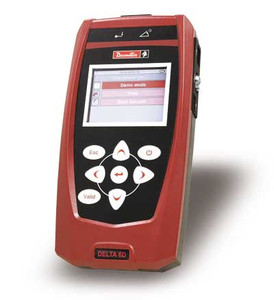

Desoutter DELTA 6D Torque and Angle Measuring Unit

Part number	6159351020
Model	DELTA 6D
Net weight	0.5 kg	1.1 lb
Net weight	1.1 lb	1/2 kg
Width	95 mm	3.74"
Width	3.74"	95 mm
Depth	45 mm	1.77"
Depth	1.77"	45 mm
Height	192 mm	7.56"
Height	7.56"	192 mm
Battery life	16 hours
Charger	110/240 V

Benefits

DELTA 6D reads angle from DRT tranducer, ideal to test advanced electric nutrunner T&A strategies. DELTA 6D introduces Tool and PSet and definition with Route management, Statistic (ISO, CNOMO or NF standards), Curve and serial communication toCVI controllers or Barcode.

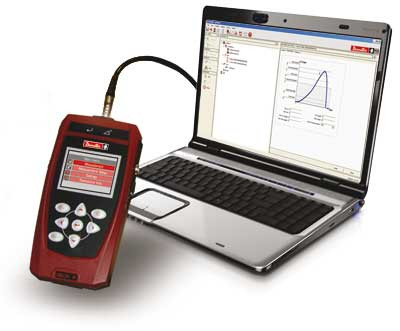

SPC analysis, trace overlay and off-line programming are available in combination with Delta QC Licensed version

Features

Connection to DRT4, DRT5, DST

Connection to CMD and GSE type (through optional analog/digital adapter)

Angle measurement

Wrench Test

Nutrunner Test

Pulse Tool Test

1000 tools

1000 pset

Integrated Statistic (Cm, Cmk (ISO, NF and CNOMO standards))

Results: 5000

10 curves

CVI autocalibration

External Barcode connectivity

Li-Ion high capacity battery of 16 hours of autonomy or external power supply

Desoutter Industrial Tools are some of the finest tools available for production and manufacturing tool applications. AirToolPro.com by Zampini Industrial Group is a premier distributor of Desoutter Air and Electric Tools, and has been a trusted Desoutter Partner since 1987! From precision torque screwdrivers to DC Electric systems to proven high performance air grinders, Desoutter has you covered. Desoutter tools have best in class performance, fit, and finish, and they are designed to achieve the impressive goals below as thoroughly as possible:

- Good Balance	- Minimize Vibration
- Low Weight	- Minimize Exhaust Air Jet
- Minimize Torque Reaction	- Maximize Power To Weight Ratio
- Thermal Insulation	- Minimize Oil From Exhaust
- Minimize Torque Impulse	- Appropriate Size
- Minimize Necessary Trigger Loading	- Excellent Grip
