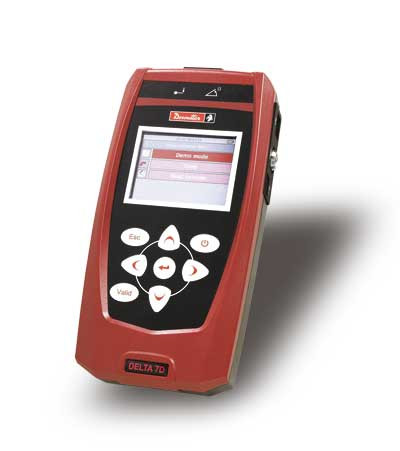

Desoutter DELTA 7D Torque and Angle Measuring Unit

Part number	6159351030
Model	DELTA 7D
Net weight	0.5 kg	1.1 lb
Net weight	1.1 lb	1/2 kg
Width	95 mm	3.74"
Width	3.74"	95 mm
Depth	45 mm	1.77"
Depth	1.77"	45 mm
Height	192 mm	7.56"
Height	7.56"	192 mm
Battery life	16 hours
Charger	110/240 V

Benefits

DELTA 7D combines all DELTA 6D features with DWTA wrench communication for Residual Torque check

available with Torque plus Angle strategy.

Thanks to the new joint analysis strategy the Delta 7D in combination with DWTA becomes

the perfect measurement instrument to characterise the real joint in the line, key

feature to:

find real joint yield point

set the production tightening tool with the correct torque and angle values increasing the quality in the overall production process

Features

Connection to DRT4, DRT5, DST

Connection to DWT, DWTA

Connection to CMD and GSE type

Angle measurement

Wrench Test

Nutrunner Test

Pulse Tool Test

1000 tools & Pset

Integrated Statistic (Cm, Cmk (ISO, NF and CNOMO standards) + SPC)

Quality & Production Strategies

Automatic torque residual check

Results: 5000

10 curves

CVI autocalibration

Embedded barcode

External Barcode connectivity

Li-Ion high capacity battery of 16 hours of autonomy or external power supply

Desoutter Industrial Tools are some of the finest tools available for production and manufacturing tool applications. AirToolPro.com by Zampini Industrial Group is a premier distributor of Desoutter Air and Electric Tools, and has been a trusted Desoutter Partner since 1987! From precision torque screwdrivers to DC Electric systems to proven high performance air grinders, Desoutter has you covered. Desoutter tools have best in class performance, fit, and finish, and they are designed to achieve the impressive goals below as thoroughly as possible:

- Good Balance	- Minimize Vibration
- Low Weight	- Minimize Exhaust Air Jet
- Minimize Torque Reaction	- Maximize Power To Weight Ratio
- Thermal Insulation	- Minimize Oil From Exhaust
- Minimize Torque Impulse	- Appropriate Size
- Minimize Necessary Trigger Loading	- Excellent Grip
