Description

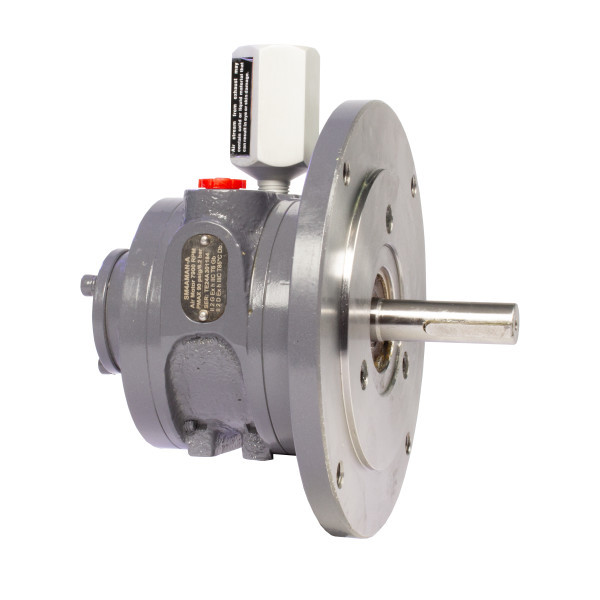

The all-new Ingersoll Rand® SM Series Lube-Free Air Motors significantly reduce the need for frequent maintenance while delivering maximum horsepower in a compact design. This makes them perfect for applications that require both portability and efficient use of space. Engineered to operate in harsh environments, these motors feature a self-regulating cooling system that maintains optimal temperatures, ensuring consistent performance and extended longevity. Installation is straightforward with multiple mounting options available, including Foot, Flange, Hub, and NEMA, allowing compatibility with a wide variety of setups. The motors provide easy throttling and quick response times for instant starts and stops, and an auto-stop mechanism protects against overload situations. Additionally, the SM Series Lube-Free Air Motors offer a higher power-to-weight ratio compared to competitors and are CE-certified for safe operation in hazardous locations.

Features and Benefits

Efficiency: Lube free airline operation provides clean, consistent performance that minimizes downtime – making maintenance quick and cost-effective.

Performance: Get seamless control in dynamic environments with easy throttling and quick response times that ensure instant start and stop.

Durability: Auto-stop mechanism protects the motor to deliver longevity and reliability under overload conditions.

Safety: ATEX and CE certified for reliable performance in hazardous environments requiring intrinsically safe components.

Product Uses and Applications

Paint Mixing, Conveyers, Pipe Cutting, Industrial Equipment, pre-lube and post-lube pumps

Specifications

Specification	Value
Product Length	6.56 in
Product Width	3.9 in
Product Height	7 in
Product Weight	11.22 lb
Power Source	Air Powered
Warranty	1-year
Drive Size	5/8 in
Drive Type	Round Keyed
Starting Torque	2.6 ft-lb (3.5 nm)
Rated Power	1.5 hp (1.1 kW)
Air Inlet	1/2"-14 NPT
Air Pressure	90 psi
Max Pressure	6.2 bar
Housing Material	Steel
Standards/Certifications	ATEX and CE certified
Gear Train	Gearless
Motor	Rotary Vane
In line	Direct Drive
Reversible	Reversible
Finish	Black Oxide
Drive Length	1.94 in
Gear Ratio	1:1
Keyaway Length	1.31 in
Max Free Speed	7900 rpm
Mounting Type	NEMA
Operating Temperature Range	33.8F to 104F
Air Consumption at Max HP	67 scfm
Gear Reduction	Direct Drive
