Description

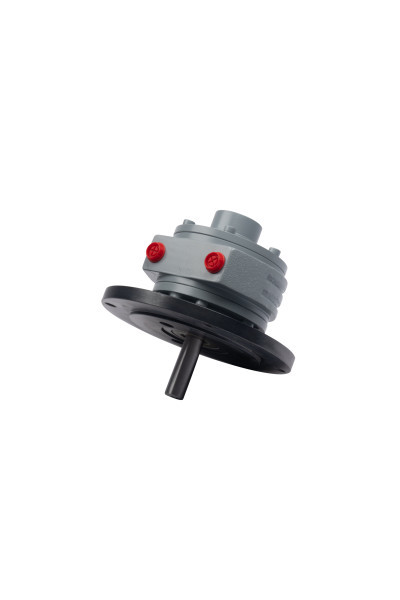

The all-new Ingersoll Rand® SM Series Lube-Free Air Motors significantly reduce the need for frequent maintenance while delivering maximum horsepower in a compact design. This makes them perfect for applications that require both portability and efficient use of space. Engineered to operate in harsh environments, these motors feature a self-regulating cooling system that maintains optimal temperatures, ensuring consistent performance and extended longevity. Installation is straightforward with multiple mounting options available, including Foot, Flange, Hub, and NEMA, allowing compatibility with a wide variety of setups. The motors provide easy throttling and quick response times for instant starts and stops, and an auto-stop mechanism protects against overload situations. Additionally, the SM Series Lube-Free Air Motors offer a higher power-to-weight ratio compared to competitors and are CE-certified for safe operation in hazardous locations.

Features and Benefits

Efficiency: Lube free airline operation provides clean, consistent performance that minimizes downtime – making maintenance quick and cost-effective.

Performance: Get seamless control in dynamic environments with easy throttling and quick response times that ensure instant start and stop.

Durability: Auto-stop mechanism protects the motor to deliver longevity and reliability under overload conditions.

Safety: ATEX and CE certified for reliable performance in hazardous environments requiring intrinsically safe components.

Product Uses and Applications

Paint Mixing, Conveyers, Pipe Cutting, Industrial Equipment, pre-lube and post-lube pumps

Specifications

Specification	Value
Product Length	5.67 in
Product Width	3.9 in
Product Height	7 in
Product Weight	11.22 lb
Power Source	Air Powered
Warranty	1-year
Drive Size	1/2 in
Drive Type	Round Woodruff
Starting Torque	2.6 ft-lb (3.5 nm)
Rated Power	1.5 hp (1.1 kW)
Air Inlet	1/2"-14 NPT
Air Pressure	90 psi
Max Pressure	6.2 bar
Housing Material	Steel
Standards/Certifications	ATEX and CE certified
Gear Train	Gearless
Motor	Rotary Vane
In line	Direct Drive
Reversible	Reversible
Finish	Paint, Gray
Drive Length	1.12 in
Gear Ratio	1:1
Keyaway Length	0.13 in
Max Free Speed	7900 rpm
Mounting Type	Foot or Face
Operating Temperature Range	33.8F to 104F
Air Consumption at Max HP	67 scfm
Gear Reduction	Direct Drive
