Description

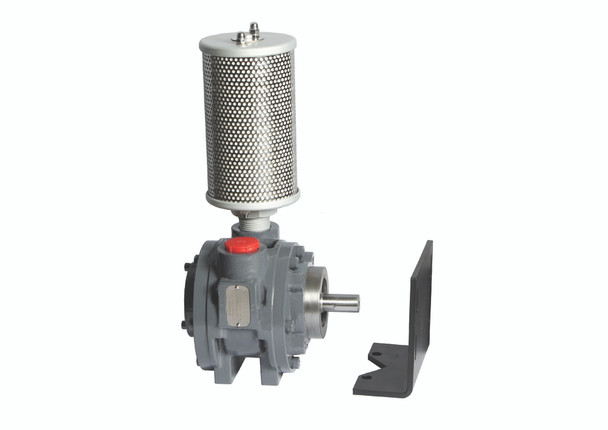

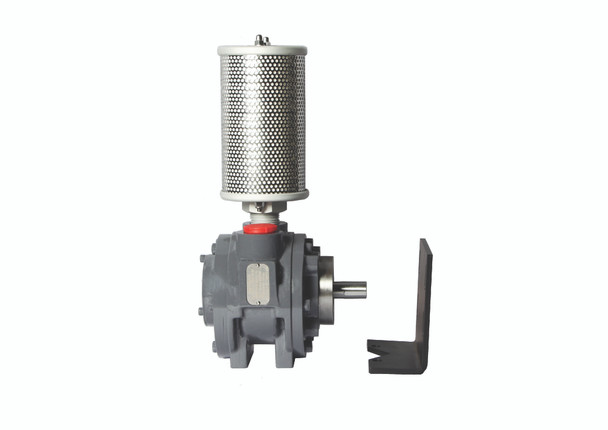

The all-new Ingersoll Rand® SM Series Lube-Free Air Motors significantly reduce the need for frequent maintenance while delivering maximum horsepower in a compact design. This makes them perfect for applications that require both portability and efficient use of space. Engineered to operate in harsh environments, these motors feature a self-regulating cooling system that maintains optimal temperatures, ensuring consistent performance and extended longevity. Installation is straightforward with multiple mounting options available, including Foot, Flange, Hub, and NEMA, allowing compatibility with a wide variety of setups. The motors provide easy throttling and quick response times for instant starts and stops, and an auto-stop mechanism protects against overload situations. Additionally, the SM Series Lube-Free Air Motors offer a higher power-to-weight ratio compared to competitors and are CE-certified for safe operation in hazardous locations.
Features and Benefits
Specifications
| Product Length | 7.3 in |
| Product Width | 5.85 in |
| Product Height | 13.66 in |
| Product Weight | 22.5 lb |
| Power Source | Air Powered |
| Warranty | 1-year |
| Drive Size | 3/4 in |
| Drive Type | Round Keyed |
| Starting Torque | 10 ft-lb (13.6 nm) |
| Rated Power | 4.8 hp (3.6 kW) |
| Air Inlet | 1"-11 1/2 NPT |
| Air Pressure | 90 psi |
| Max Pressure | 6.2 bar |
| Housing Material | Steel |
| Standards/Certifications | ATEX and CE certified |
| Gear Train | Gearless |
| Motor | Rotary Vane |
| In line | Direct Drive |
| Reversible | Reversible |
| Finish | Paint, Gray |
| Drive Length | 1.45 in |
| Gear Ratio | 1:1 |
| Keyway Length | 0.98 in |
| Max Free Speed | 7000 rpm |
| Mounting Type | NEMA |
| Operating Temperature Range | 33.8F to 104F |
| Air Consumption at Max HP | 152 scfm |
| Gear Reduction | Direct Drive |
Direct Replacement For The Following Models:
Gast 8AM-NRV-28A NEMA 145TC Mount Air Motor
Gast 8AM-NRV-32A NEMA 145TC Mount Air Motor
Fenner Model Style VA8C NEMA 145TC Mount Air Motor
