Description

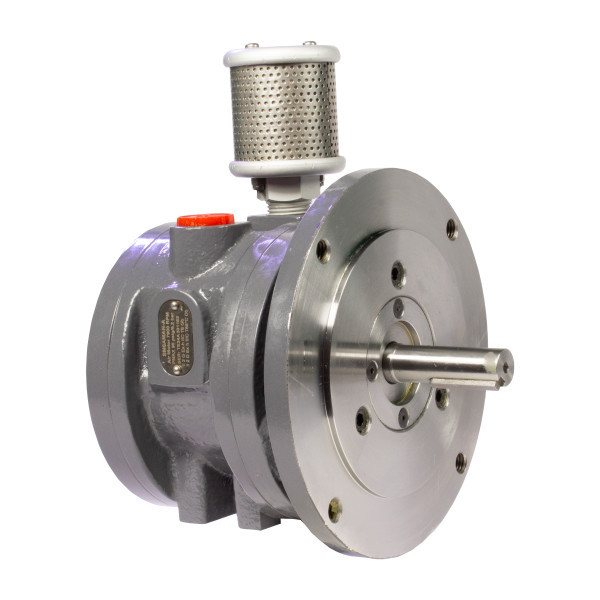

The all-new Ingersoll Rand® SM Series Lube-Free Air Motors significantly reduce the need for frequent maintenance while delivering maximum horsepower in a compact design. This makes them perfect for applications that require both portability and efficient use of space. Engineered to operate in harsh environments, these motors feature a self-regulating cooling system that maintains optimal temperatures, ensuring consistent performance and extended longevity. Installation is straightforward with multiple mounting options available, including Foot, Flange, Hub, and NEMA, allowing compatibility with a wide variety of setups. The motors provide easy throttling and quick response times for instant starts and stops, and an auto-stop mechanism protects against overload situations. Additionally, the SM Series Lube-Free Air Motors offer a higher power-to-weight ratio compared to competitors and are CE-certified for safe operation in hazardous locations.
Features and Benefits
Specifications
| Specification | Value |
|---|---|
| Product Length | 7.77 in |
| Product Width | 5.12 in |
| Product Height | 8.18 in |
| Product Weight | 16.25 lb |
| Power Source | Air Powered |
| Warranty | 1-year |
| Drive Size | 5/8 in |
| Drive Type | Round Keyed |
| Starting Torque | 5.3 ft-lb (7.2 nm) |
| Rated Power | 3.6 hp (2.7 kW) |
| Air Inlet | 1/2"-14 NPT |
| Air Pressure | 90 psi |
| Max Pressure | 6.2 bar |
| Housing Material | Steel |
| Standards/Certifications | ATEX and CE certified |
| Gear Train | Gearless |
| Motor | Rotary Vane |
| In line | Direct Drive |
| Reversible | Reversible |
| Finish | Black Oxide |
| Drive Length | 1.95 in |
| Gear Ratio | 1:1 |
| Keyaway Length | 1.31 in |
| Max Free Speed | 7900 rpm |
| Mounting Type | Foot / Face |
| Operating Temperature Range | 33.8F to 104F |
| Air Consumption at Max HP | 120 scfm |
| Gear Reduction | Direct Drive |
Direct Replacement For The Following Models:
Gast 6AM-FRV-23A Face Mount Air Motor
Gast 6AM-FRV-5A Face Mount Air Motor
Gast 6AM-NRV-7A Face Mount Air Motor
Fenner Model Style VA6X Face Mount Air Motor
Fenner Model Style VA6J Face Mount Air Motor
