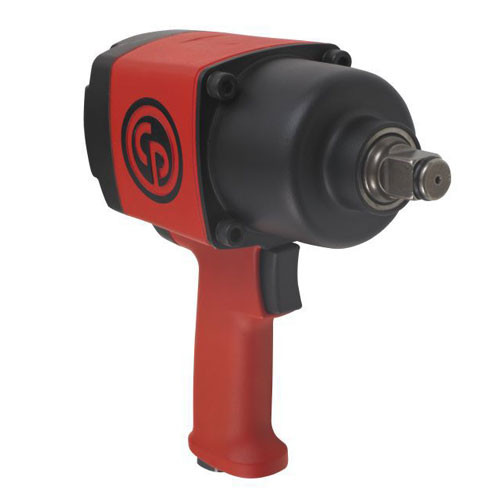

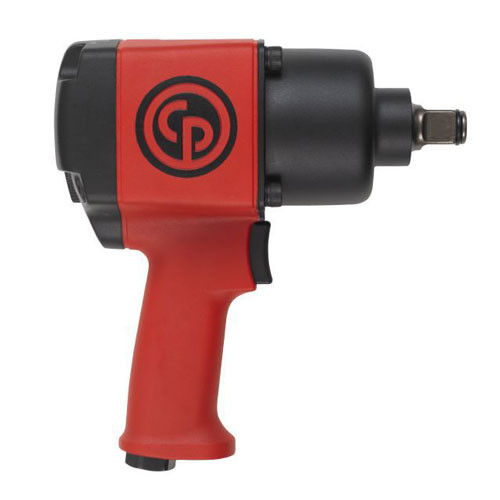

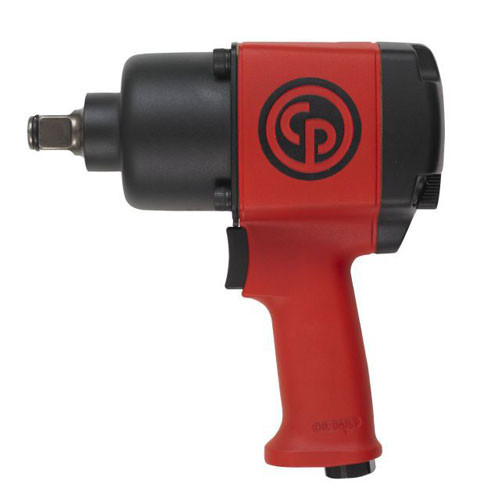

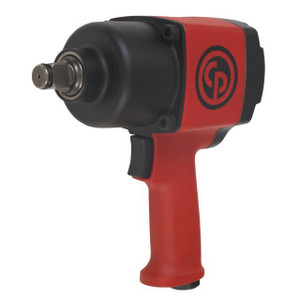

Chicago Pneumatic CP6763 3/4" Impact Wrench | 950 Ft Lbs

CP6763 - Compact, Robust & Powerful 3/4" impact for industrial maintenance applications

Benefits

Compact & Versatile for Industrial Maintenance applications

Robust for the roughest enviroments and toughest usages

Powerful to loose vitualy any bolts up to M27 (ISO 10,9)

Features

3/4" impact wrench with Dual retainer

Shorts dimensions and narrow side-to-center for easy access

Robust Steel Clutch housing

Powerfull Twin hammer clutch: 1,200 ft.lbs (1,630 Nm)

Combined power regulator with forward/reverse

Available now at AirToolPro / Zampini Industrial 1-800-353-4676

Part number	6151590400
Model	CP6763
Handle type	Pistol
Square drive	3/4"
Working Torque Range (fwd)	350-1290 Nm	260-950
Working Torque Range (fwd)	260-950 ft.lbs	350-1290
Maximum Torque (reverse)	1630 Nm	1200 ft.lbs
Maximum Torque (reverse)	1200 ft.lbs	1630 Nm
Free speed	6300 rpm
Blows per minute	900
Net weight	12.1 lb	5 1/2 kg
Net weight	5.5 kg	12.1 lb
Power/weight ratio	296.363636363636 Nm/kg	99.1735537190083 ft.lb/lb
Power/weight ratio	99.1735537190083 ft.lb/lb	296.363636363636 Nm/kg
Length	8.74"	222 mm
Length	222 mm	8.74"
Side to center	41 mm	1.6"
Side to center	1.6"	41 mm
Actual air consumption	30 cfm
Actual air consumption	14.2 l/s	30 cfm
Air inlet thread size	0.375 "
Min. hose size	13 mm	1/2"
Min. hose size	1/2"	13 mm
Noise level	96 dBa
Sound Power	107 dBa
Vibration α (ISO-28927-2)	9.4 m/s²
Vibration K (ISO-28927-2)	1.3 m/s²
Socket retainer	Ring
Clutch type	Twin Hammer
Bolt size	M27
Box dimensions	224*90*232

Please Call Us For Your Best Price
